Garboli GPS Orbital disc deburring machine

GPS Orbital Deburring Machine
GPS Orbital Deburring Machine

In Stock

Qty
Request More Information
SKU: GA/GPS/ORBITAL
Garboli GPS Orbital deburring machine with deburring brush head and wet filtration system.

the Garboli GPS Orbital is designed for deburring and radiusing of flat metal components.
Suitable for the removal of burrs from plasm cutting, laser cutting, punching and even oxy acetylene cutting of steel, stainless steel, aluminium, brass and other metals.

Metal Feed Specifications:
– Thickness Min 1mm
– . Max 150mm
– Width Min 10mm
– Max 300mm

Machine Features:
– Brush wear compensation

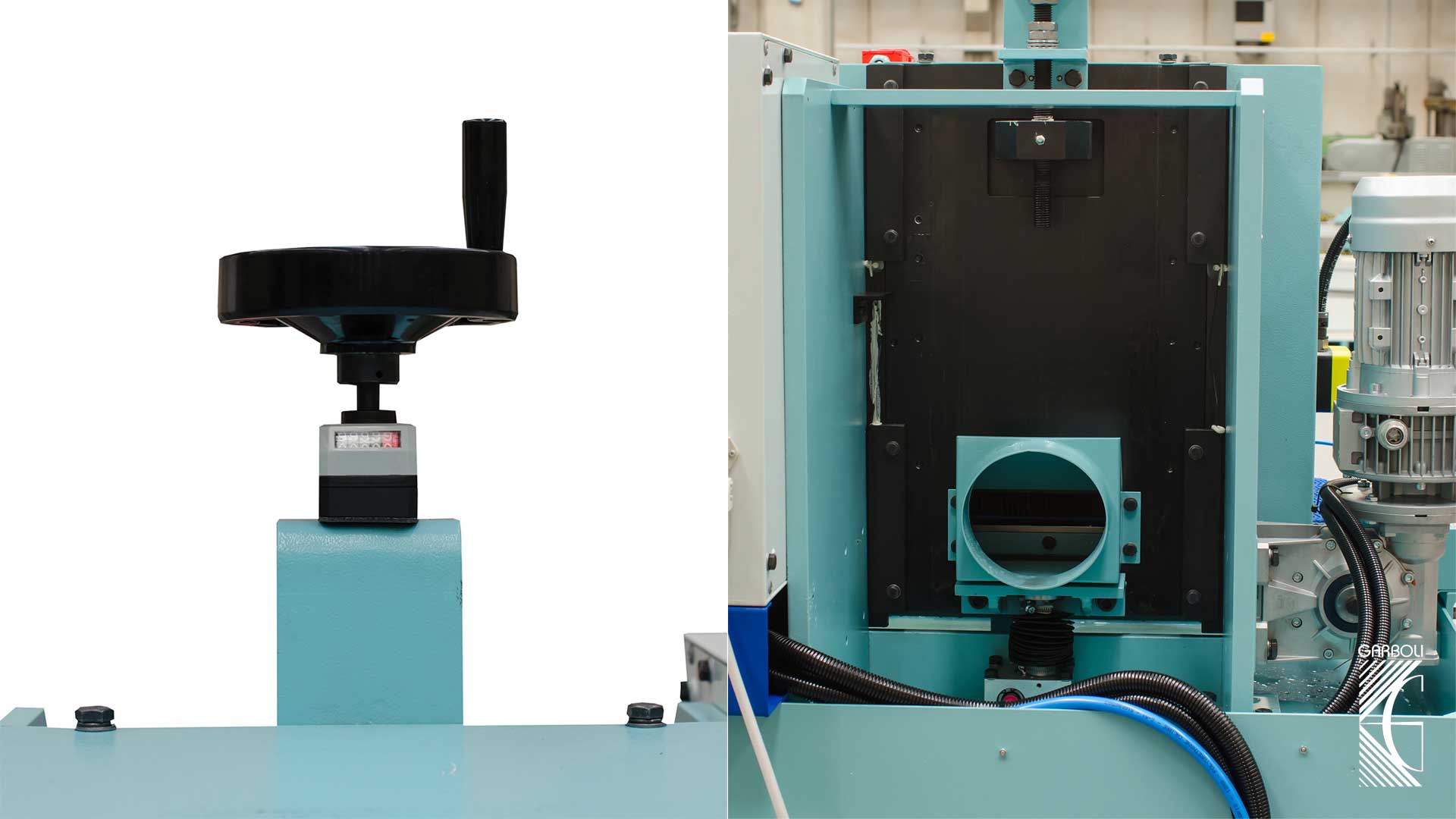

– Micrometric working height adjustment
– Recirculation filtration system
– Manual indexing water filtration system
– Separate water spray head to assist with maintenance and cleaning

Machine Specifications:
– Disc Brush Diameter 400mm
– Feed Speed Min 1 m / min
. Max 10 m / min
– Brush Motor 1.5Kw
– Feed Motor 0.37Kw
– Water Pump 0.12Kw

Machine net weight: 570Kg
Machine Dimensions: 120 x 120(h) x 138cm

Optional Features:
– Variable Speed Control
– Air blower / dryer for machine exit
– Dust collection hood option
– Front and rear mini roller tables (3 rollers each end)
– 3m Roller feed

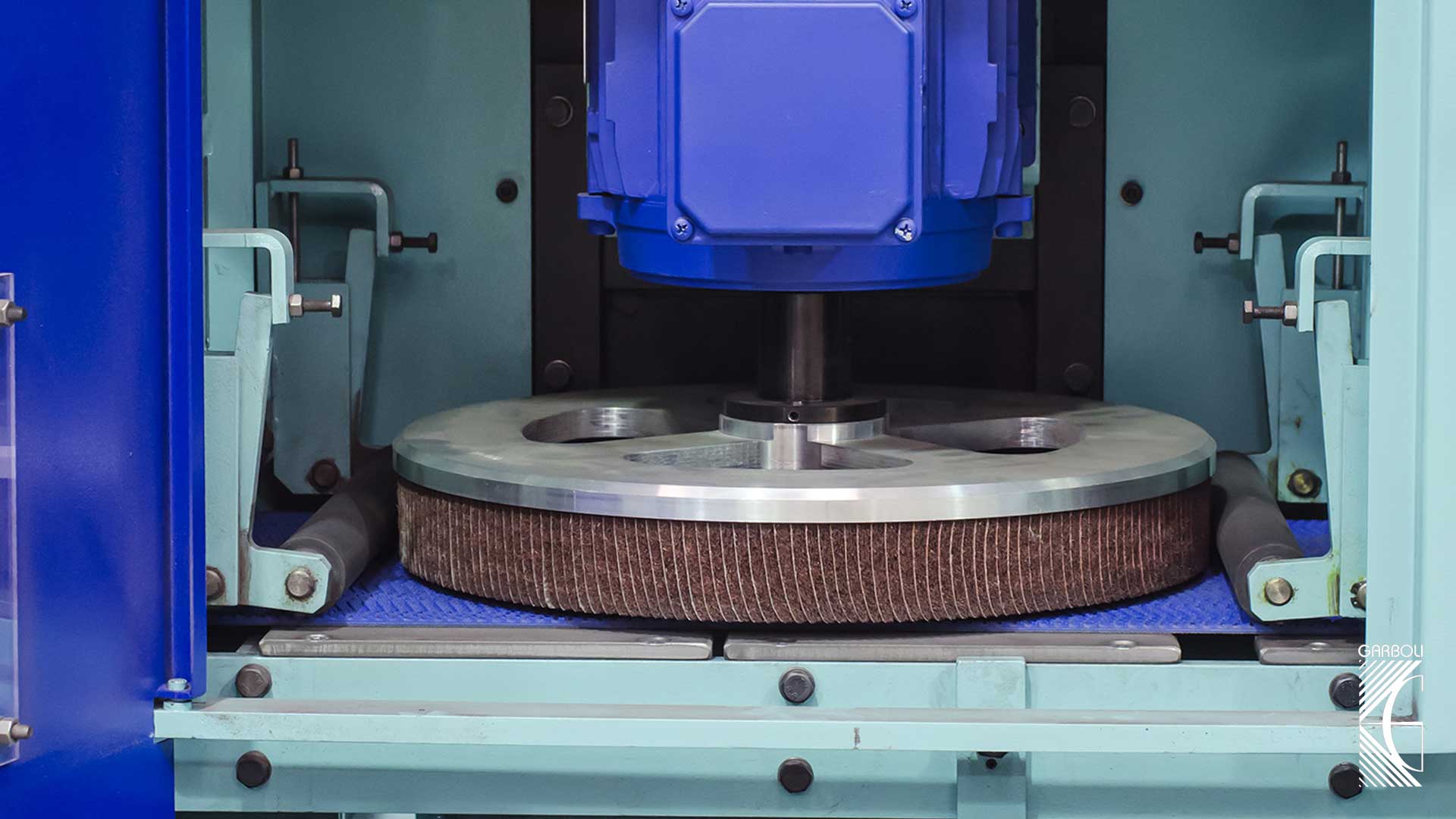

The GPS through feed machine allows for complex and small components to be fed through the machine at random angles underneath the 400mm disc head.
the rotation of the disc head allows for a deburring action to occur on all edges of the component evenly to leave a smooth consistent deburred finish ready for powder coating or painting.
