Cylinder profile carbide burrs with an end cut face. Note: If you need the carbide burr to have no cutting action on the head then we recommend you switch to Shape A – Cylinder Profile Burrs Our cylinder with an end cut carbide burrs are available in both diamond cut and also fluted cut forms to suit your particular application. Diamond Cut Burrs – for stainless steel, steel, high carbon alloys, titanium, cobalt alloys etc.. and also for hardwoods Fluted Cut Burrs – for plastics and non-ferrous metals such as aluminium and brass and softwoods.
Free UK shipping on all carbide burr orders.
The table below details all dimensions of our end cut cylindrical cylinder carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.
Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.
| Diameter | Burr Length | Spindle | Overall Length | Part Number / Links |
| 3.0mm | 14mm | 3mm | 38mm | HMC/B30314/6 |

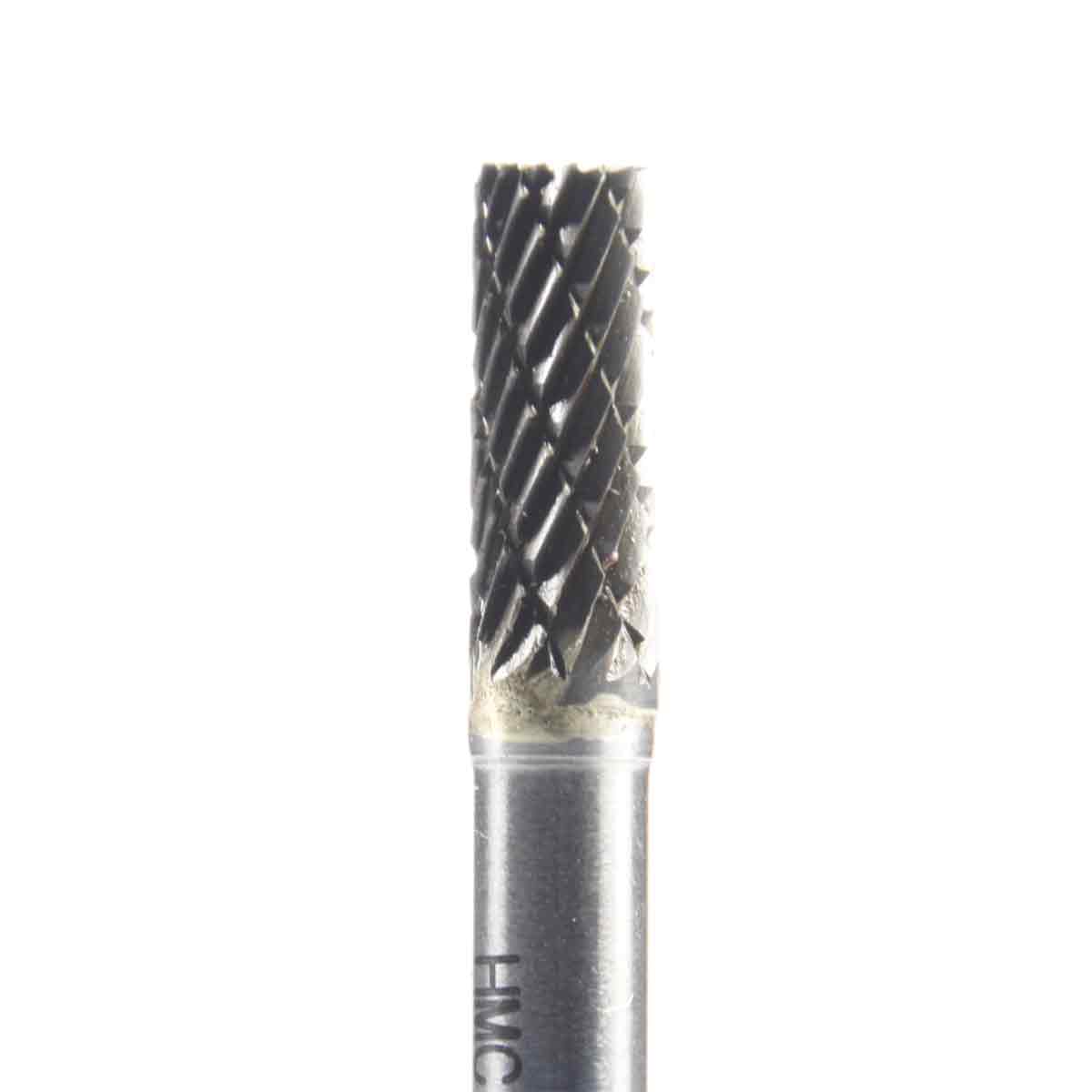

| 6.0mm | 18mm | 6mm | 50mm | HMC/B60618/6 |
| 8.0mm | 19.2mm | 6mm | 64mm | HMC/B60820/6 |

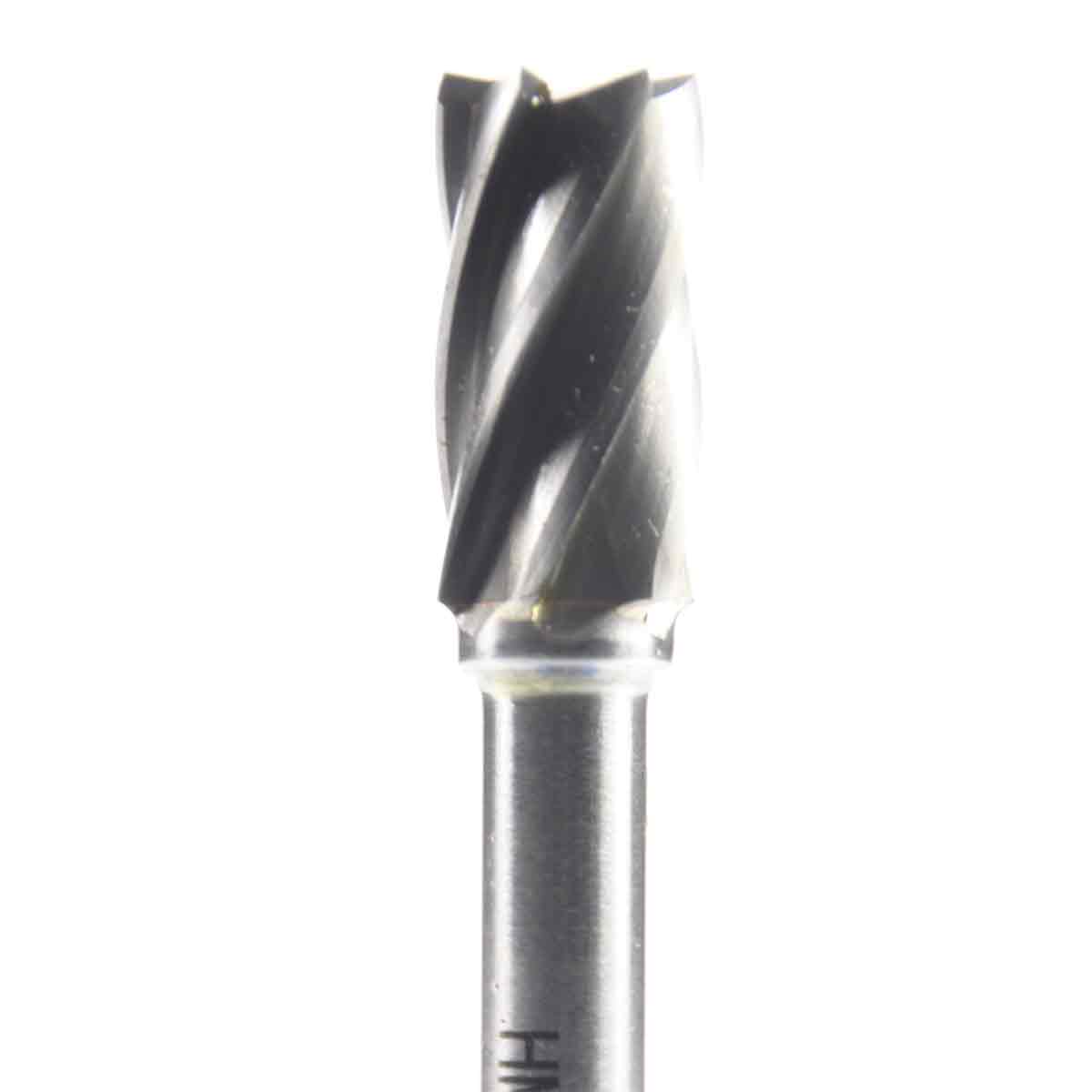

| 9.6mm | 19.2mm | 6mm | 64mm | HMC/B61020/3 |

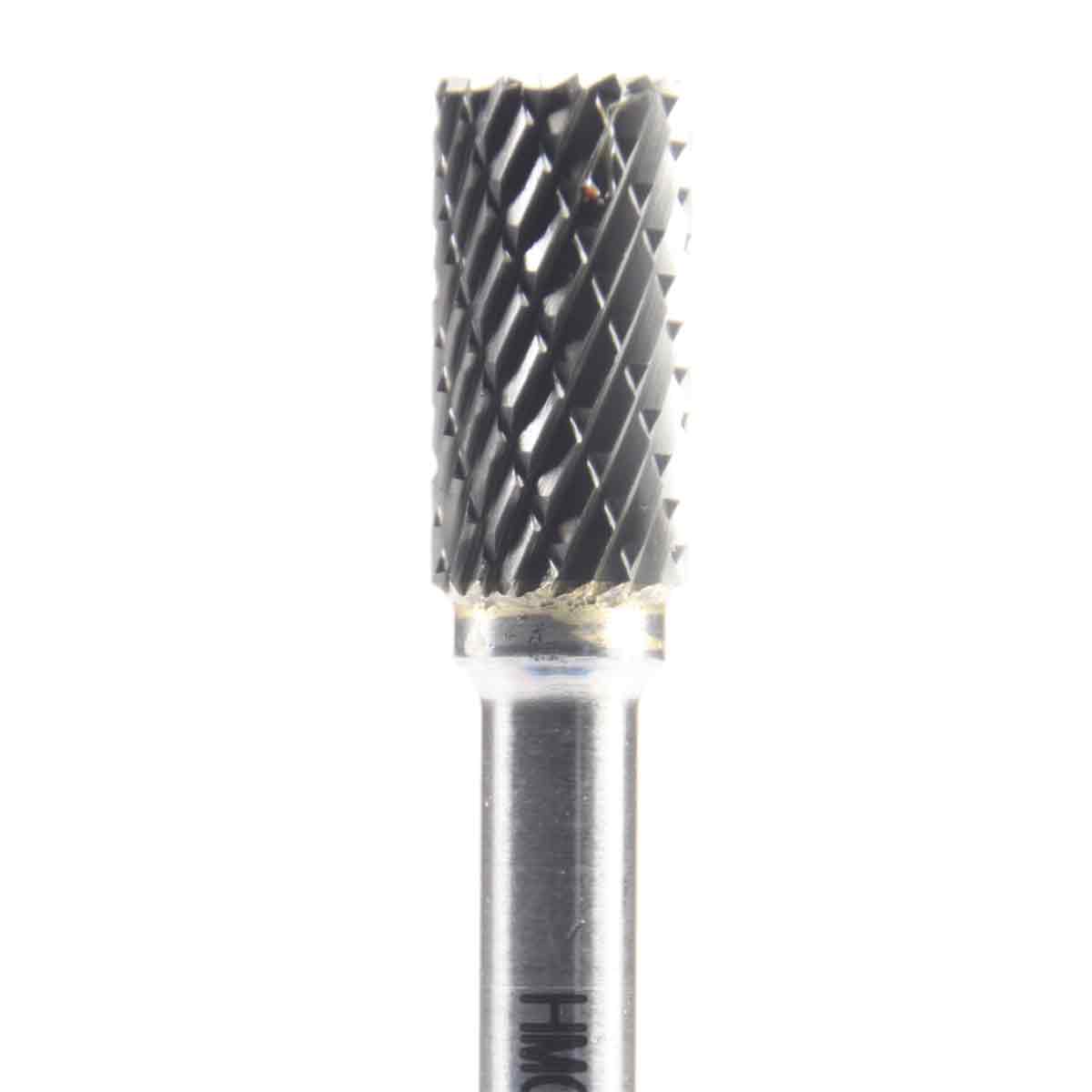

| 9.6mm | 19.2mm | 6mm | 64mm | HMC/B61020/6 |

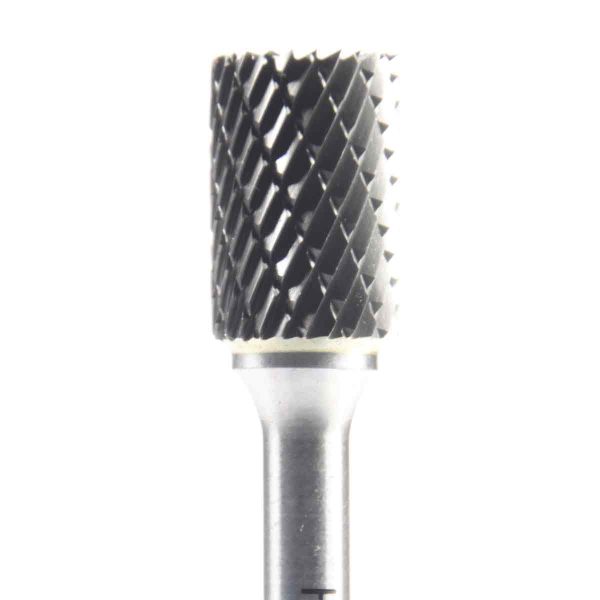

| 12.5mm | 19.2mm | 6mm | 64mm | HMC/B61220/6 |

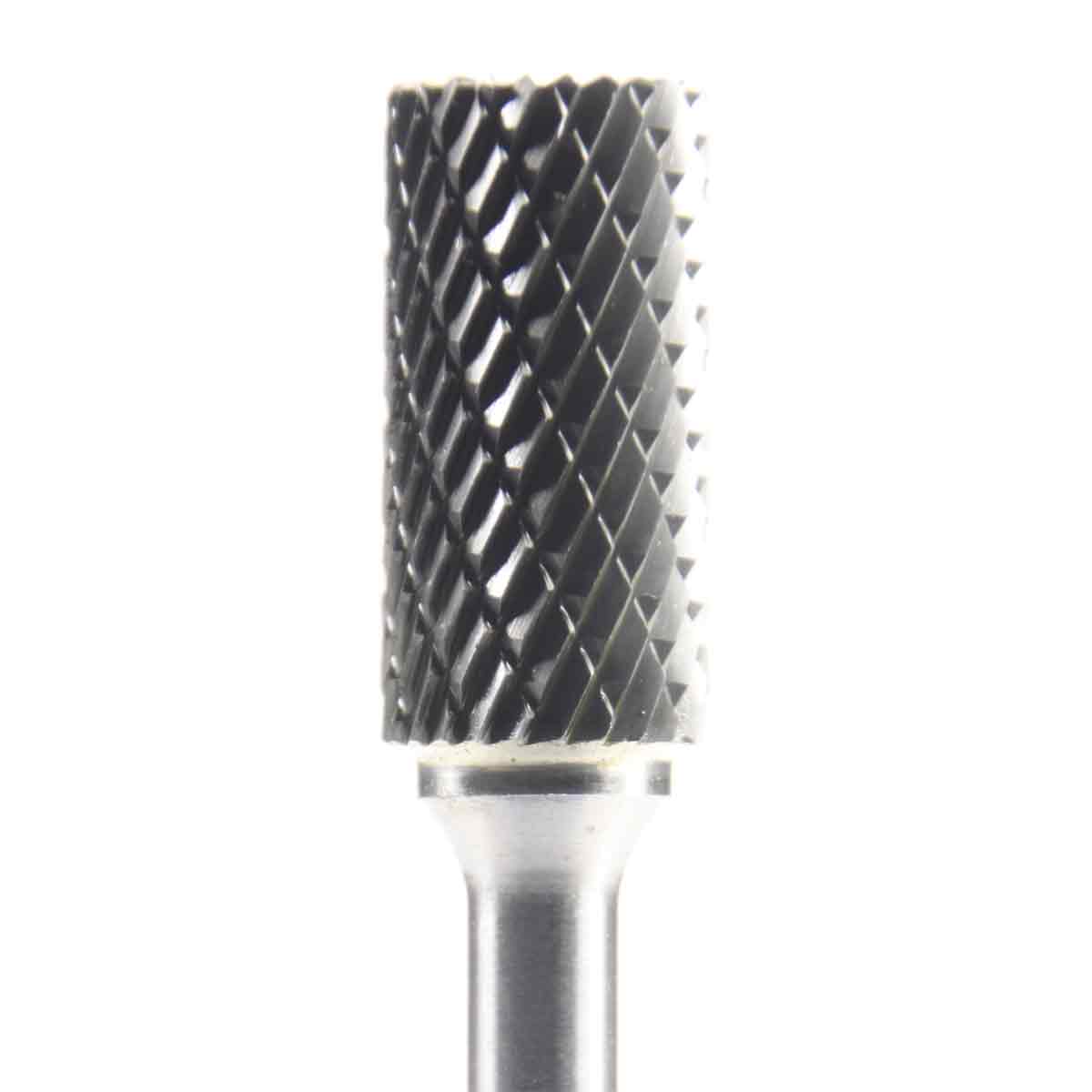

| 12.5mm | 25.4mm | 6mm | 70mm | HMC/B61225/6 |

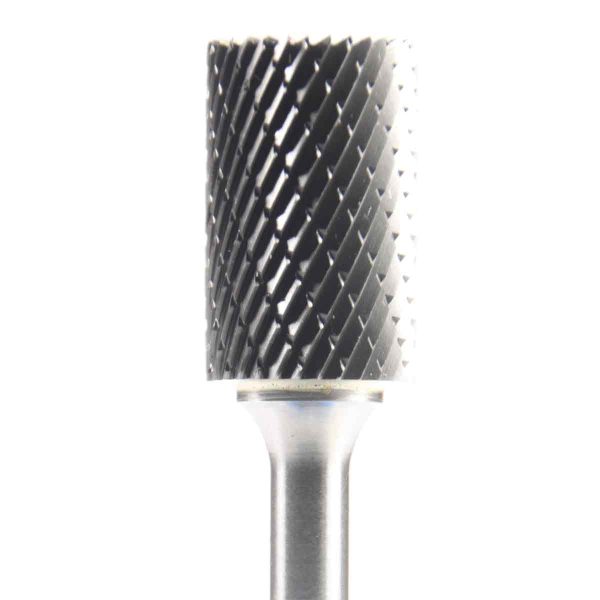

| 15.8mm | 25.4mm | 6mm | 70mm | HMC/B61525/6 |

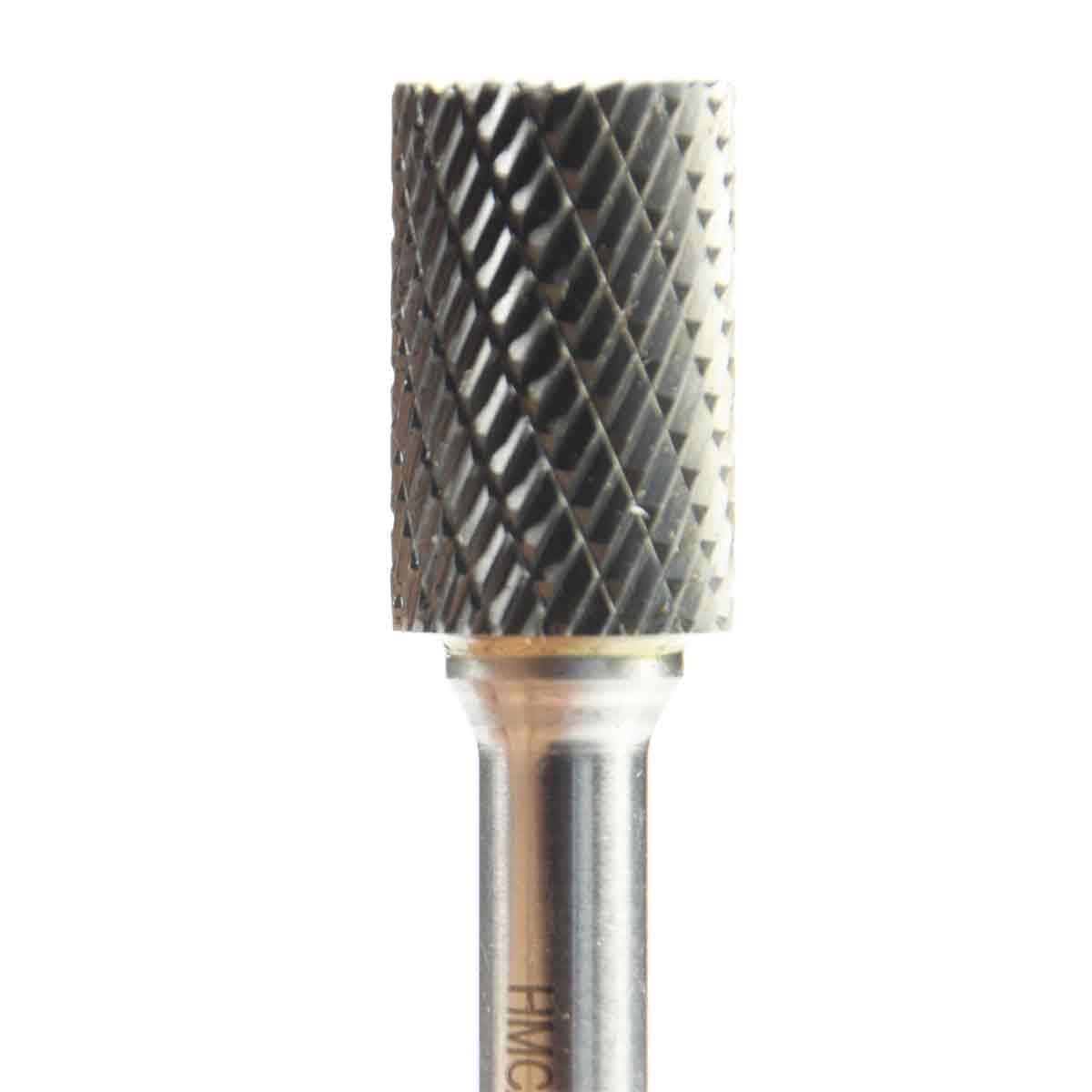

| 15.8mm | 25.4mm | 8mm | 70mm | HMC/B81525/6 |
What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables. And our full range of 80+ burrs organised by shape and size. Available here.
