What is inside our Carbide Burr Sets?
Included in each Carbide Burr Kit is a range of specifically chosen Burrs to tackle your particular application. Please note: all burrs provided in our sets have a 6mm spindle.
Don’t need the full kit? The tables below detail out exactly which burrs are included in each kit. If you are just looking for a few, or need a replacement for a lost part, then click on the part number of your desired burr to be taken to the product page.

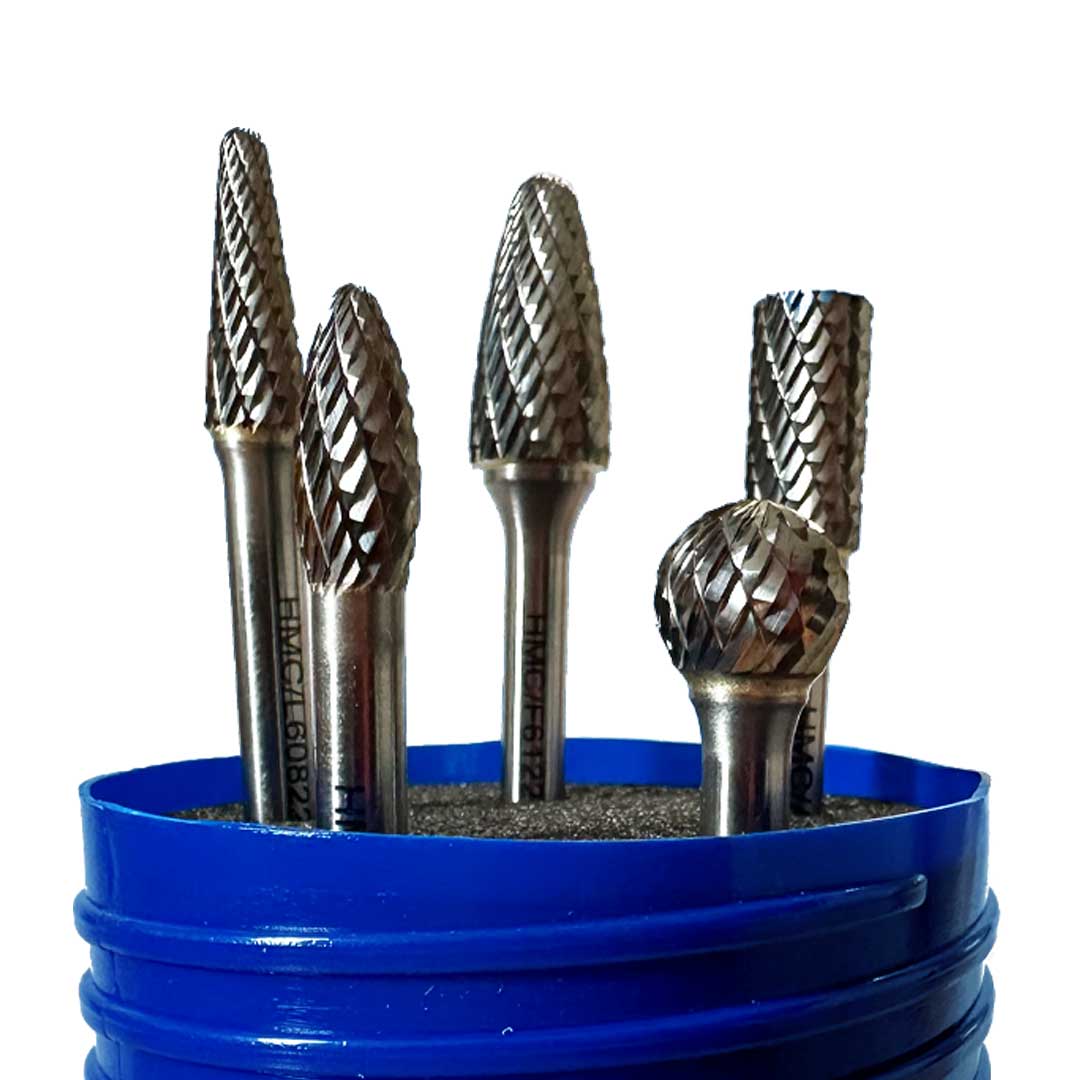

Carbide Burr Set for use on Hard Metals:
All Burrs included in set 01 for Hard Metals are Diamond Cut. Diamond Cut Burrs are for use on carbon steels, cast iron, tool and stainless steel as well as titanium and cobalt alloys, hardwoods, composite materials and high-density fibreglass.
Part Number | Carbide Burrs Included |
HMC/SET/01 | HMC/A61020/6 – Cylinder Shaped Burr. Burr Length 19.2mm. Burr Diameter 9.6mm. |
HMC/D61212/6 – Ball Shaped Burr. Burr Length 11.2mm. Burr Diameter 12.5mm. | |
HMC/F61225/6 – Round Tree Burr. Burr Length 25.4mm. Burr Diameter 12.5mm. | |
HMC/H60820/6 – Flame Shaped Burr. Burr Length 19.2mm. Burr Diameter 8.0mm. | |
HMC/L60822/6 – Rounded Cone Burr. Burr Length 22mm. Burr Diameter 8.0mm. |

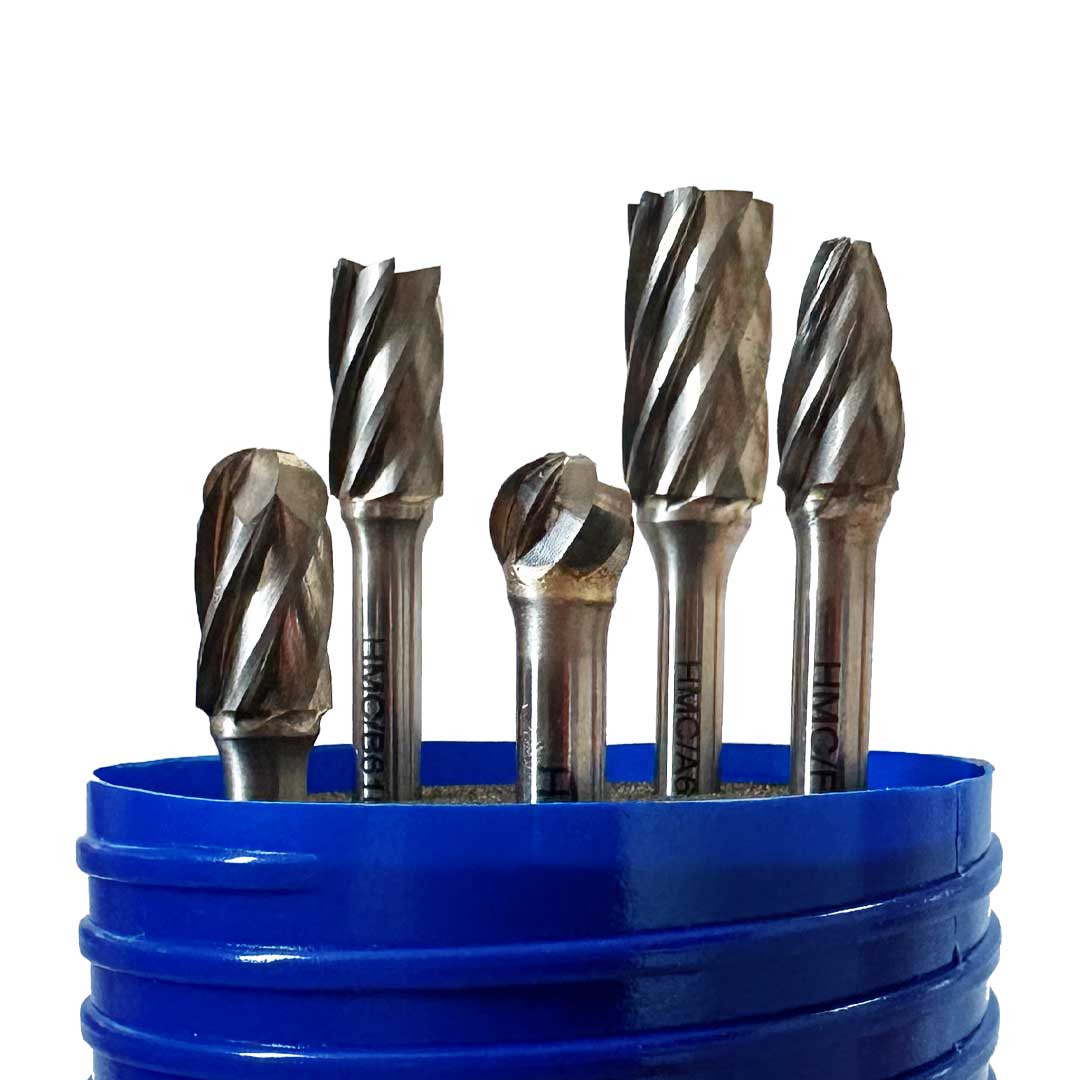

Carbide Burr Set for use on Non-Ferrous Metals:
All Burrs included in set 02 for Non-Ferrous Metals are Fluted Cut. Fluted Cut Burrs are for aluminium, copper, brass, bronze and other soft non-ferrous metals. Also softwoods, toughened plastics and low-density fibreglass.
Part Number | Carbide Burrs Included |
HMC/SET/02 | HMC/A61225/3 – Cylinder Shaped Burr. Burr Length 25.4mm. Burr Diameter 12.5mm. |
HMC/B61020/3 – End Cut Cylinder Burr. Burr Length 19.2mm. Burr Diameter 9.6mm. | |
HMC/C61020/3 – Domed Cylinder Burr. Burr Length 19.2mm. Burr Diameter 9.6mm. | |
HMC/D61010/3 – Ball Shaped Burr. Burr Length 8.5mm. Burr Diameter 9.6mm. | |
HMC/F61020/3 – Round Tree Burr. Burr Length 19.2mm. Burr Diameter 9.6mm. |

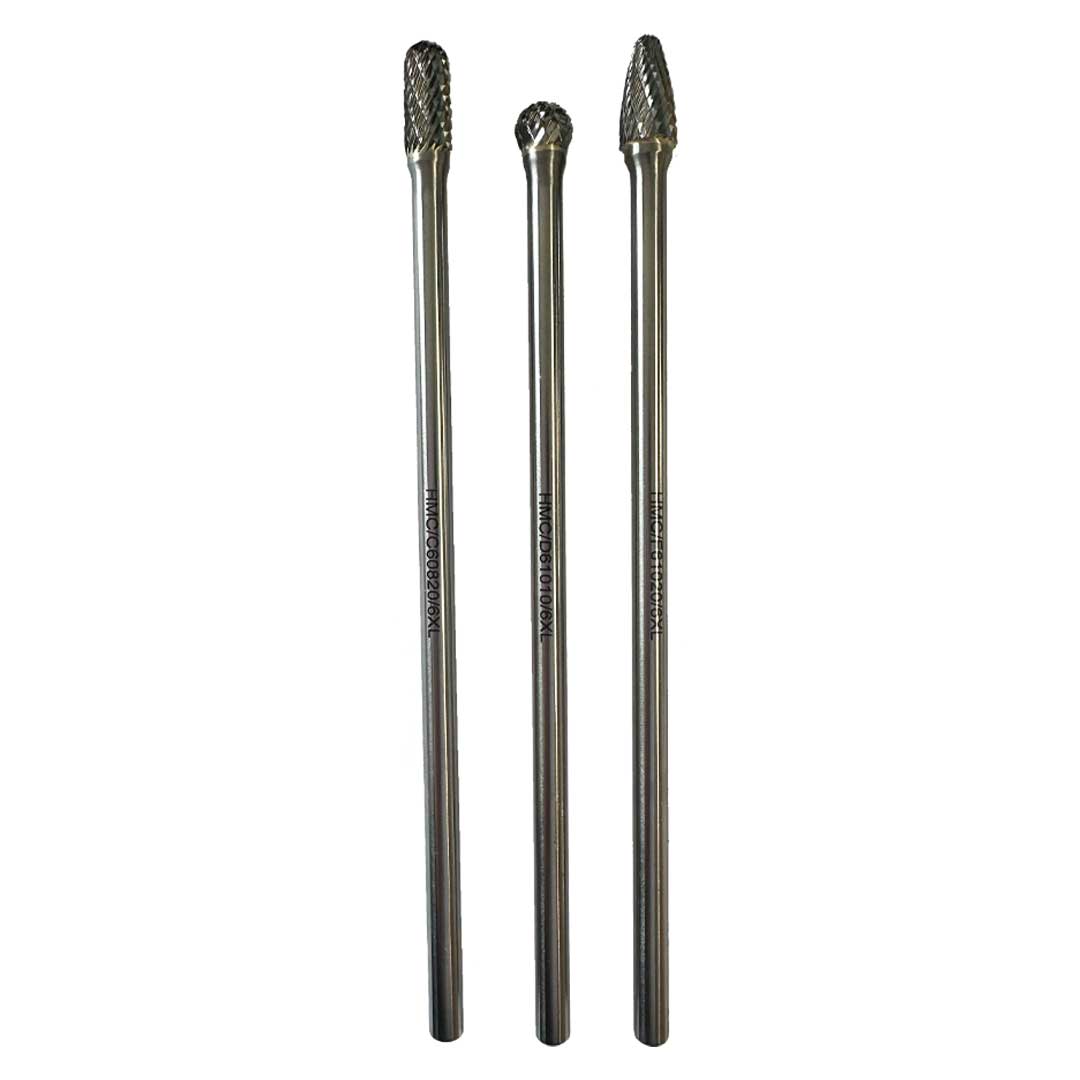

Extra Long Carbide Burr Set:
All Burrs included in set 03 Extra Long Carbide Burrs are Diamond Cut. Diamond Cut Burrs are for use on carbon steels, cast iron, tool and stainless steel as well as titanium and cobalt alloys, hardwoods, composite materials and high-density fibreglass.
Part Number | Carbide Burrs Included |
HMC/SET/03 | HMC/C60820/6XL – Bull Nose Burr. Burr Length 8mm. Burr Diameter 9.5mm. |
HMC/D61010/6XL – Ball Shaped Burr. Burr Length 20mm. Burr Diameter 8.0mm. | |
HMC/F61020/6XL – Round Tree Burr. Burr Length 19mm. Burr Diameter 8.0mm. |
Carbide Burr Set for Welding Preparation:
All Burrs included in set 04 for Welding Preparation are Diamond Cut. Diamond Cut Burrs are for use on carbon steels, cast iron, tool and stainless steel as well as titanium and cobalt alloys, hardwoods, composite materials and high-density fibreglass.
Part Number | Carbide Burrs Included |
HMC/SET/04 | HMC/C61020/6 – Domed Cylinder Burr. Burr Length 19.2mm. Burr Diameter 9.6mm. |
HMC/E61015/6 – Teardrop Shaped Burr. Burr Length 15.8mm. Burr Diameter 9.6mm. | |
HMC/F61020/6 – Round Tree Burr. Burr Length 19.2mm. Burr Diameter 9.6mm. | |
HMC/G61220/6 – Pointed Tree Burr. Burr Length 19.2mm. Burr Diameter 12.5mm. | |
HMC/H61232/6 – Flame Shaped Burr. Burr Length 31.8mm. Burr Diameter 12.5mm. |

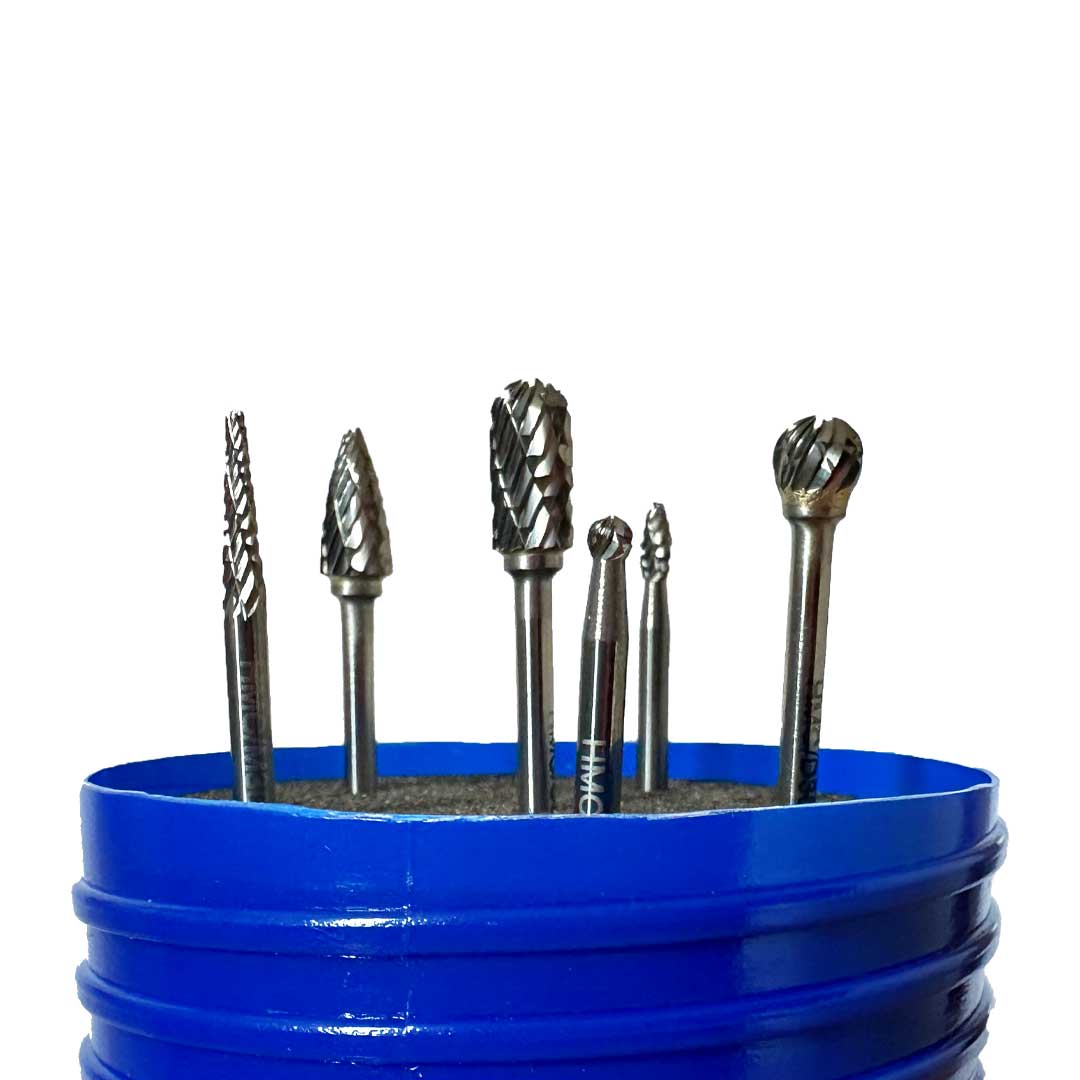

Small / Mini Carbide Burr Set:
All Mini Burrs included in set 05 are Diamond Cut. Diamond Cut Burrs are for use on carbon steels, cast iron, tool and stainless steel as well as titanium and cobalt alloys, hardwoods, composite materials and high-density fibreglass.
Part Number | Carbide Burrs Included |
HMC/SET/05 | HMC/C30312/6 – Bull Nose Burr. Burr Length 14mm. Burr Diameter 3mm. |
HMC/D30303/6 – Ball Shaped Burr. Burr Length 2.7mm. Burr Diameter 3mm. | |
HMC/D30606/6 – Ball Shaped Burr. Burr Length 5.7mm. Burr Diameter 6.35mm. | |
HMC/G30612/6 – Pointed Tree Burr. Burr Length 12.7mm. Burr Diameter 6.35mm. | |
HMC/H30306/6 – Flame Shaped Burr. Burr Length 6mm. Burr Diameter 3mm. | |
HMC/M30315/6 – Cone Shaped Burr. Burr Length 15mm. Burr Diameter 3mm. |
Abrasive Finishing Systems Carbide Burr Catalogue:
What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables. And our full range of 80+ burrs organised by shape and size. Available here.
