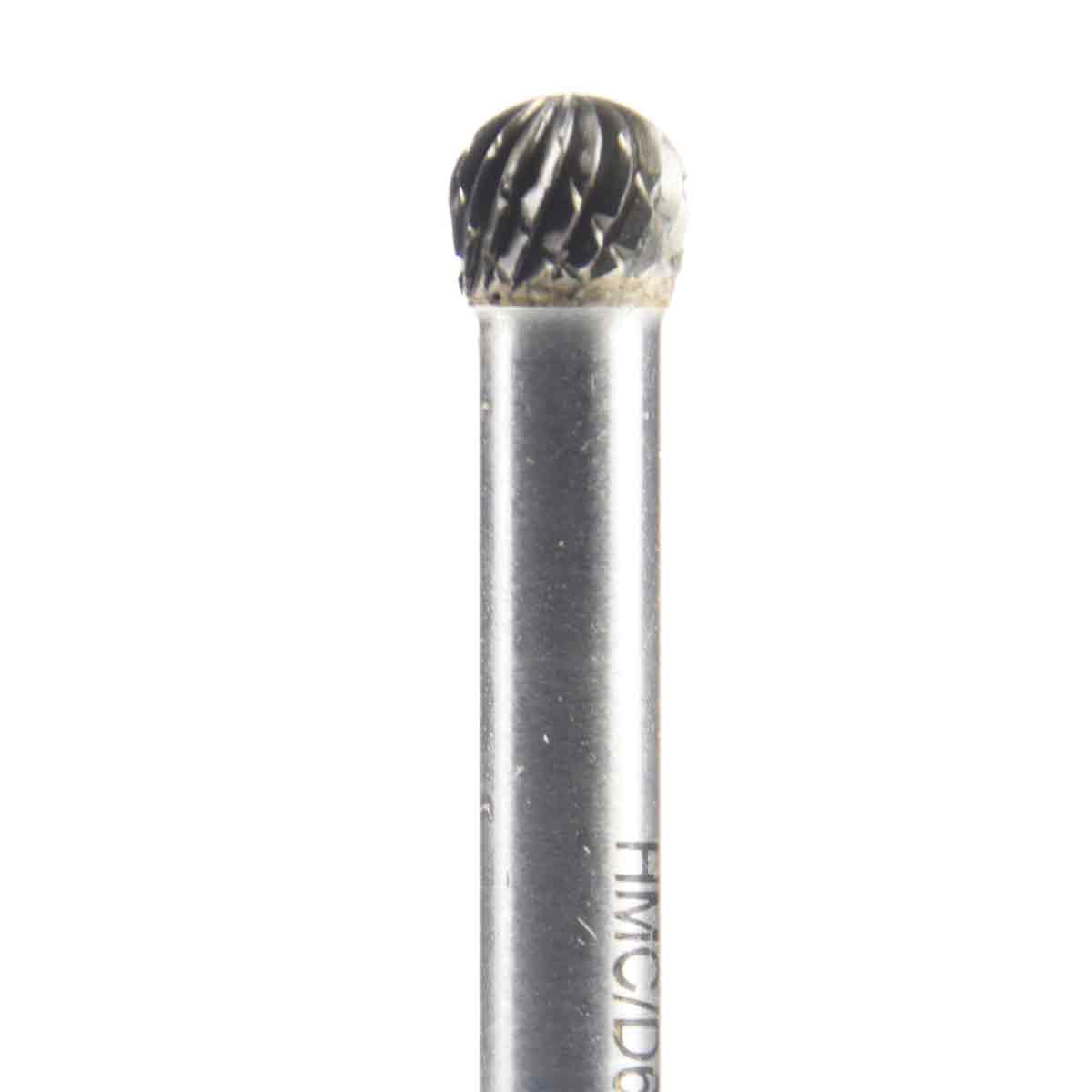

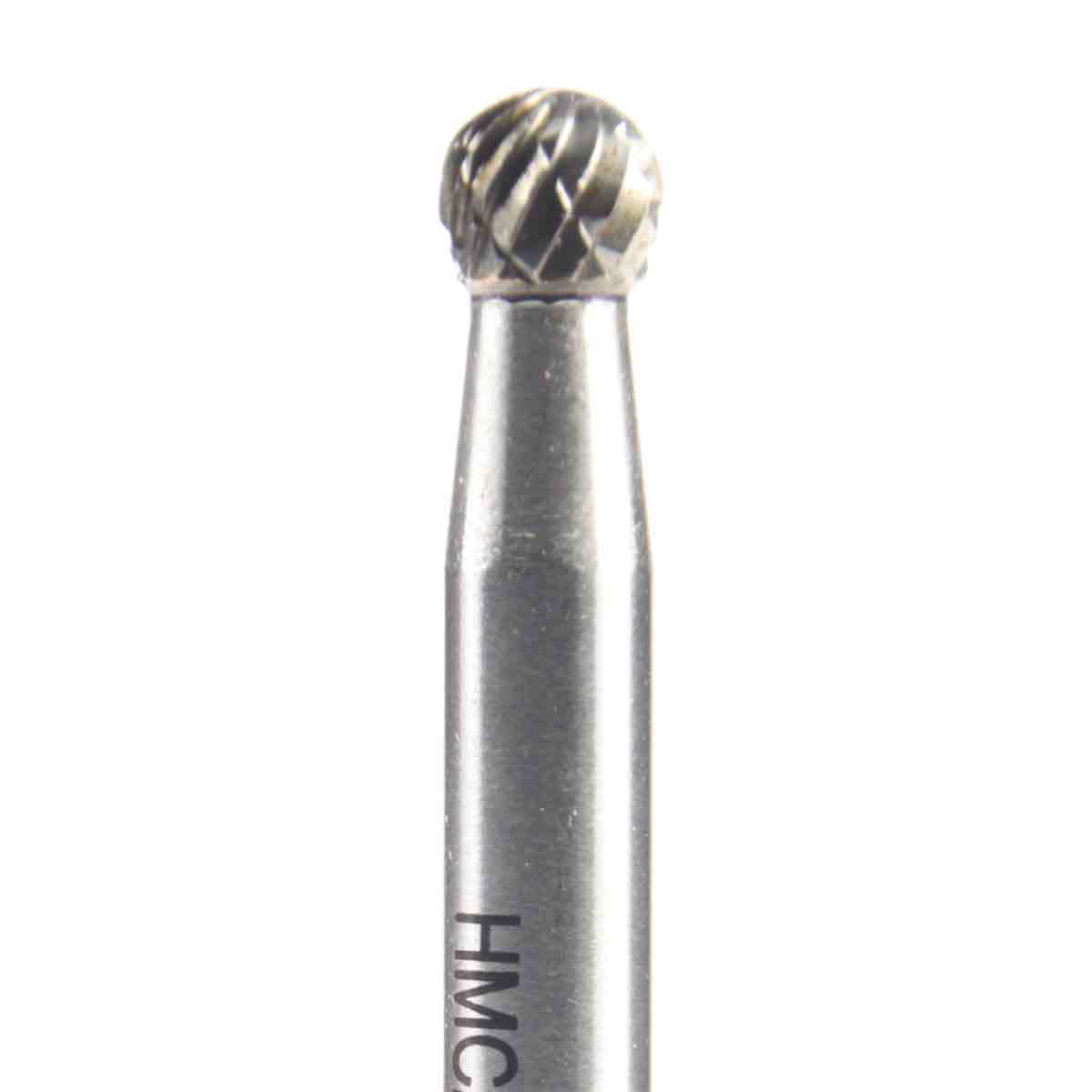

Ball Shaped Carbide Burrs – Shape D:

The table below details all dimensions of our round ball carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.

Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.

Diameter Burr Length Spindle Overall Length Part Number / Links
3.0mm 2.7mm 3mm 38mm HMC/D30303/6
6.35mm 5.7mm 3mm 45mm HMC/D30606/6
6.0mm 5.7mm 6mm 50mm HMC/D60606/6
8.0mm 7mm 6mm 52mm HMC/D60808/6
9.6mm 8.5mm 6mm 54mm HMC/D61010/3
9.6mm 8.5mm 6mm 54mm HMC/D61010/6
12.5mm 11.4mm 6mm 56mm HMC/D61212/6
15.8mm 14.4mm 6mm 59mm HMC/D61515/3
15.8mm 14.4mm 6mm 59mm HMC/D61515/6
15.8mm 14.4mm 6mm 68mm HMC/D81515/6
Extra Long Carbide Burrs – Various Shapes:
Diameter Burr Length Spindle Overall Length Part Number / Links
9.5mm 8mm 6mm 158mm HMC/C60820/6XL
8.0mm 20mm 6mm 168mm HMC/D61010/6XL
9.6mm 19mm 6mm 169mm HMC/F60820/6XL
8.0mm 19mm 6mm 168mm HMC/F61020/6XL
12.0mm 12.7mm 6mm 164mm HMC/N61212/6XL
Abrasive Finishing Systems Carbide Burr Catalogue:

What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables.  And our full range of 80+ burrs organised by shape and size. Available here.
