Counter sink shaped tungsten carbide burrs. Available in diamond cut form to suit your particular application with a 60 degree and 90 degree countersink shape. Diamond Cut Burrs – for Stainless steel, steel, high carbon alloys, titanium, cobalt alloys etc.. and also for hardwoods.
Free UK shipping on all carbide burr orders.
The table below details all dimensions of our counter sink 60 degree to 90 degree carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.
Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.
| Diameter | Burr Length | Spindle | Overall Length | Part Number / Links |

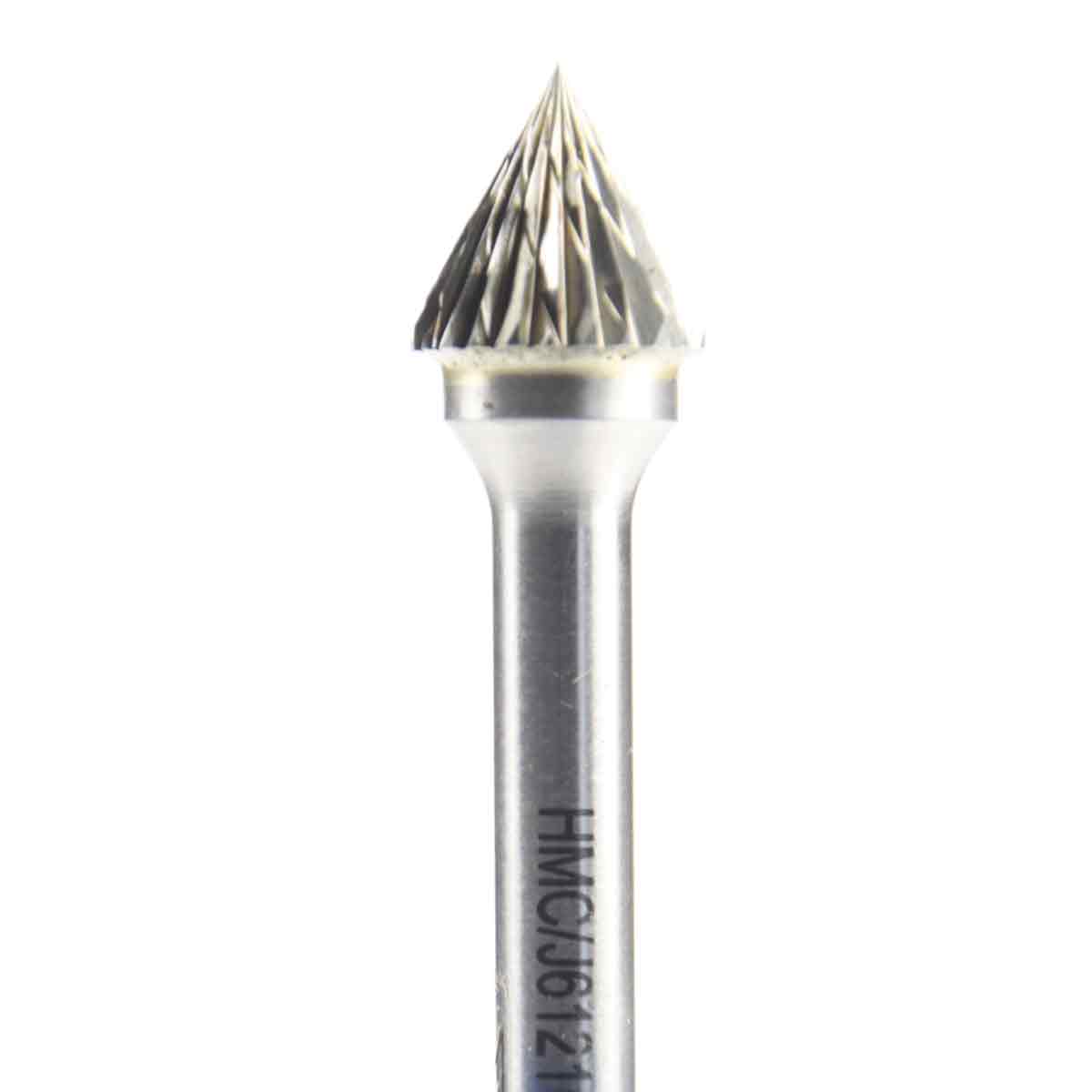

| 12.5mm | 10.8mm | 6mm | 59mm | HMC/J61210/6 |

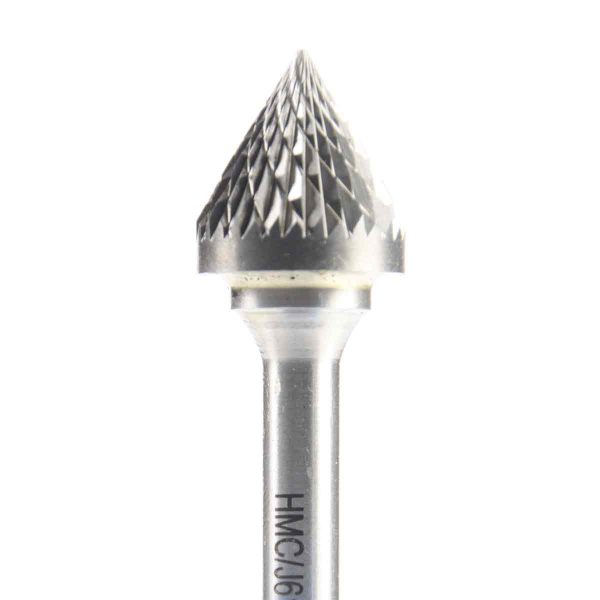

| 15.8mm | 14.5mm | 6mm | 62mm | HMC/J61512/6 |

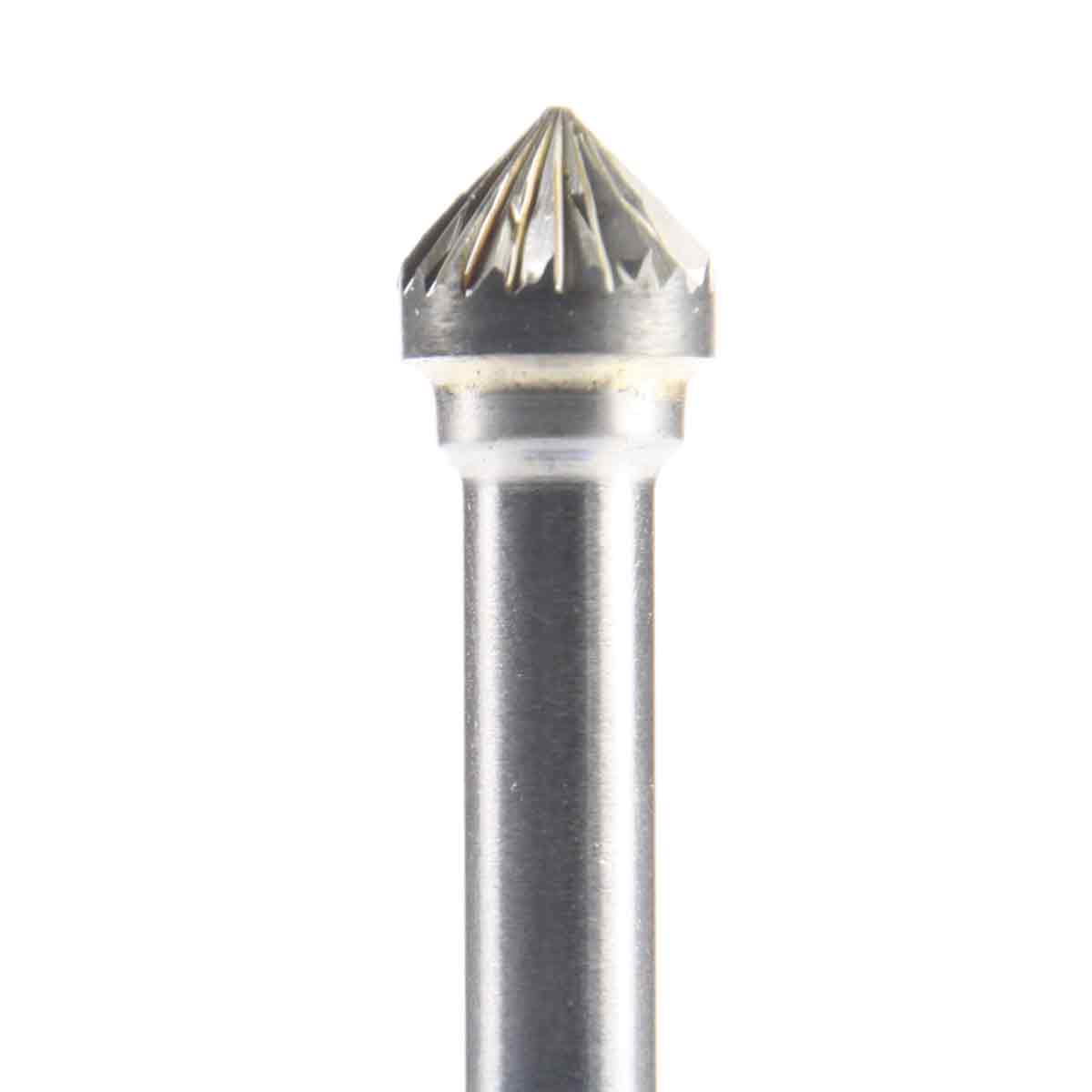

| 9.6mm | 4.3mm | 6mm | 53mm | HMC/K61004/6 |

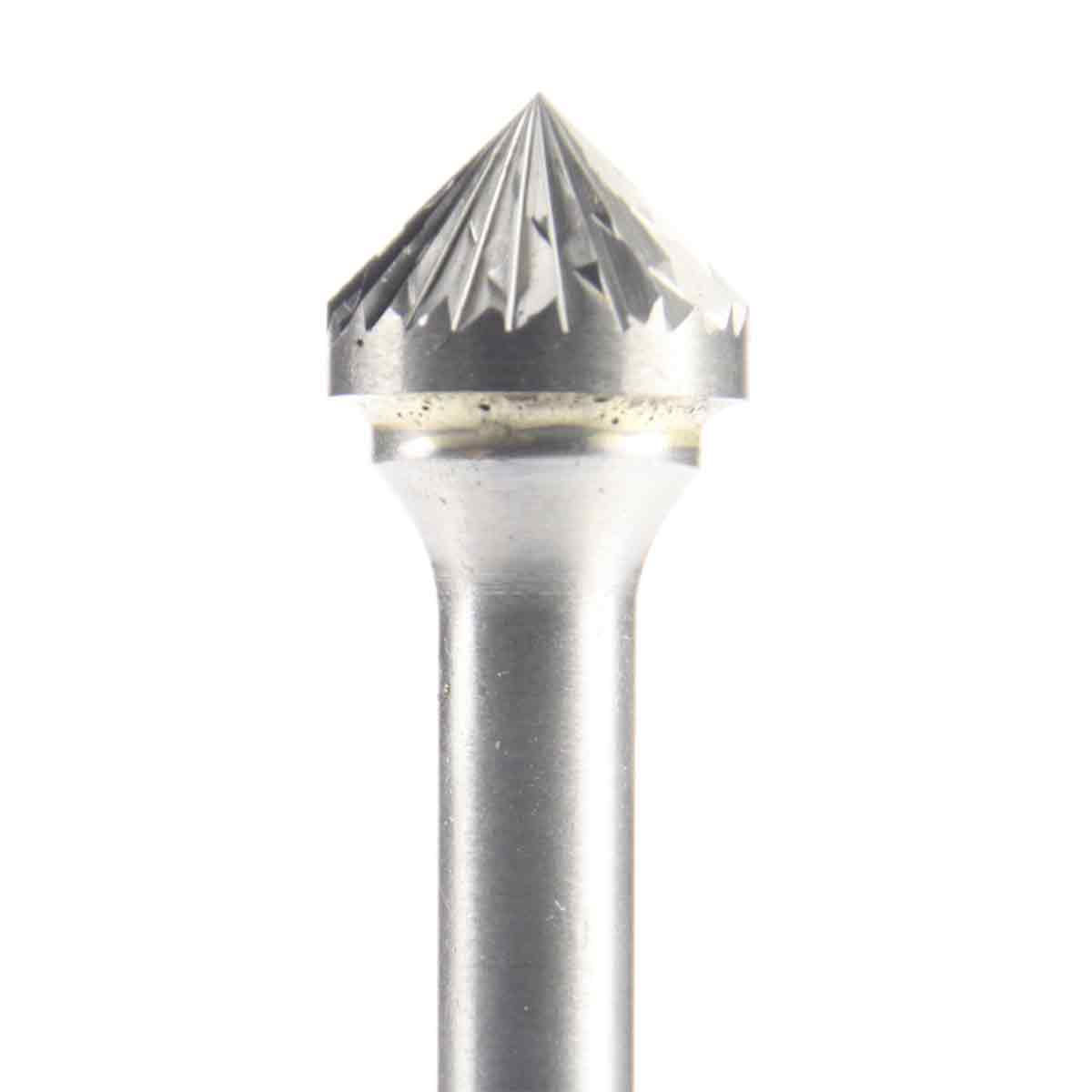

| 12.5mm | 6.8mm | 6mm | 55mm | HMC/K61206/6 |

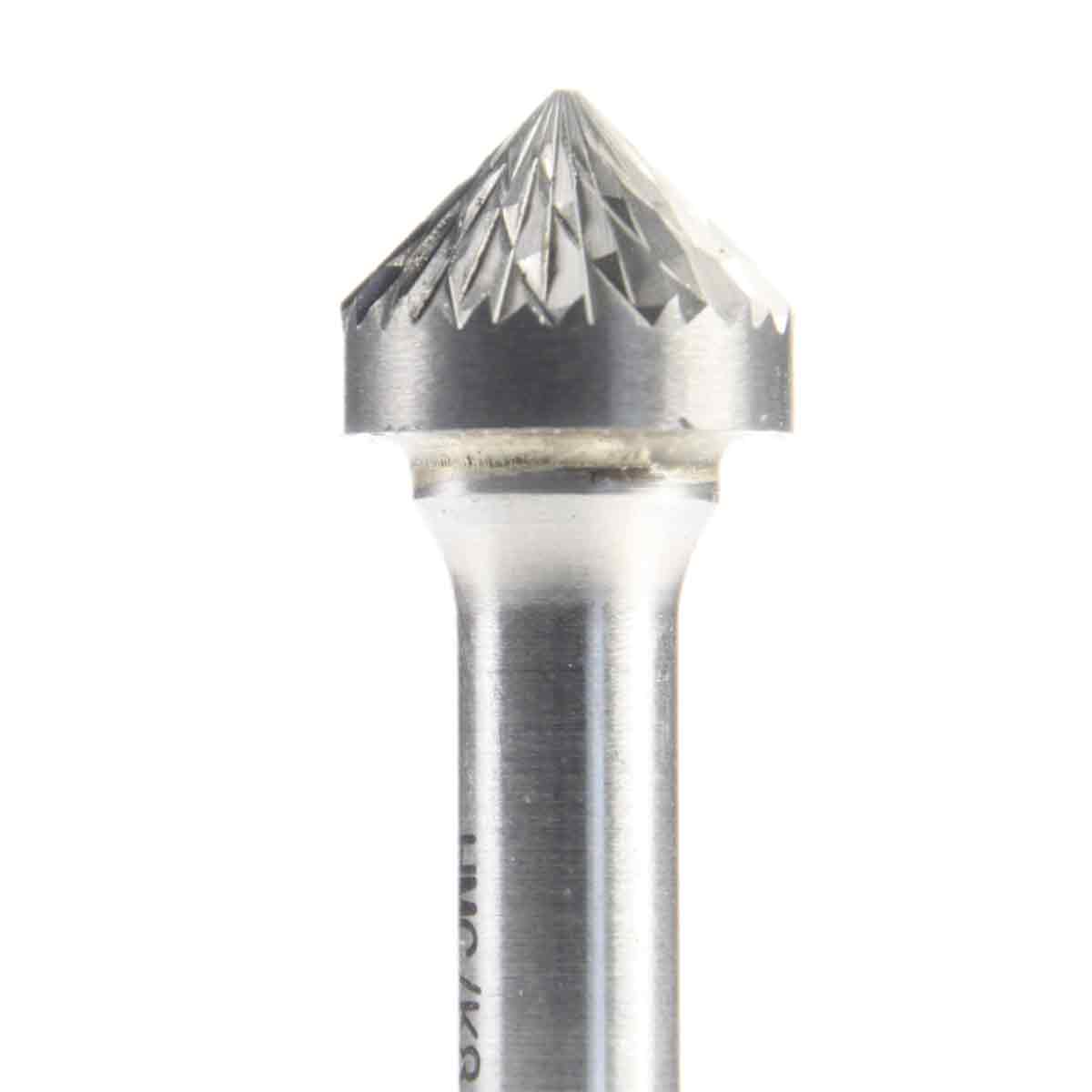

| 15.8mm | 8mm | 8mm | 57mm | HMC/K81508/6 |
What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables. And our full range of 80+ burrs organised by shape and size. Available here.
