Cone Carbide Burrs are similar to shape L in that they are both a tapering cone however the cone carbide burr tapers directly to a point. Note: If you need the carbide burr to have a more rounded end cut profile then you may wish to look at the Ball Nosed Cone burrs. Our cone profile carbide burrs are available in diamond cut forms to suit your particular application. Diamond Cut Burrs – for stainless steel, steel, high carbon alloys, titanium, cobalt alloys etc.. and also for hardwoods.
Free UK shipping on all carbide burr orders.
The table below details all dimensions of our pointed cone carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.
Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.
| Diameter | Burr Length | Spindle | Overall Length | Part Number / Links |

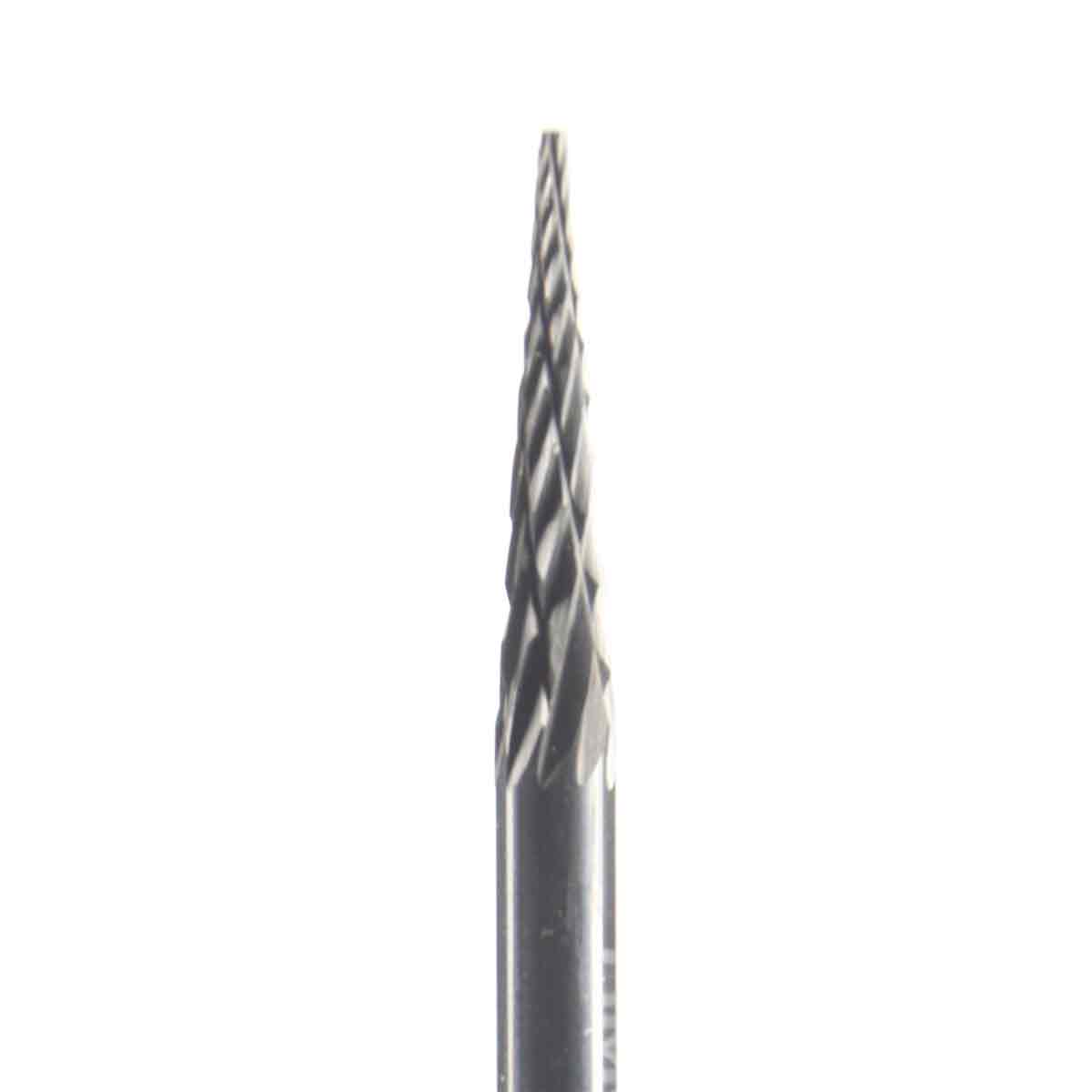

| 3.0mm | 15mm | 3mm | 38mm | HMC/M30315/6 |

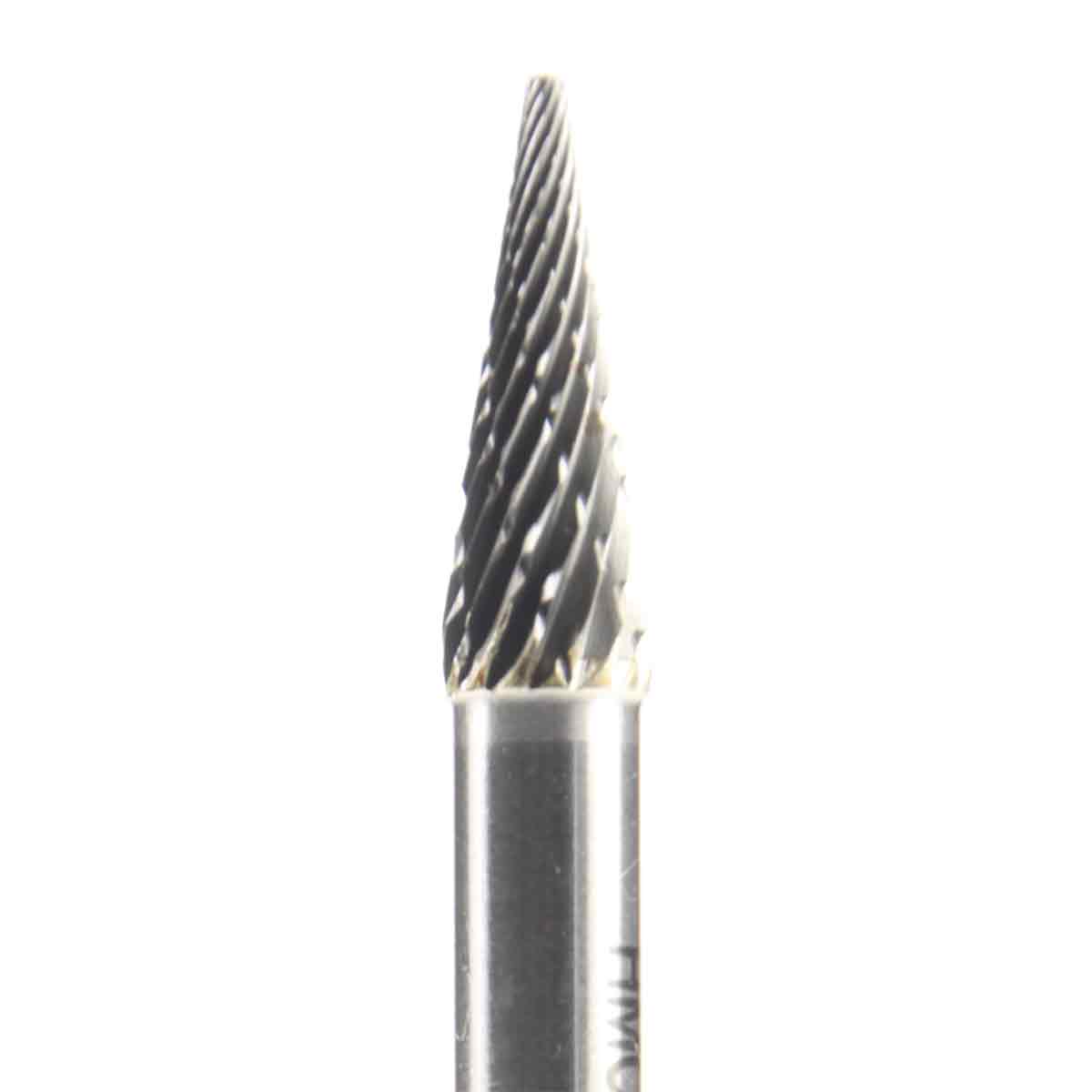

| 6.0mm | 20mm | 6mm | 58mm | HMC/M60620/6 |

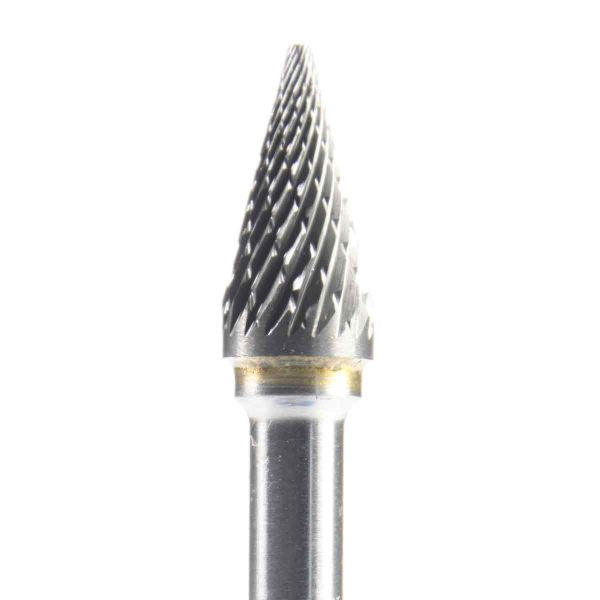

| 9.6mm | 20mm | 6mm | 64mm | HMC/M61020/6 |

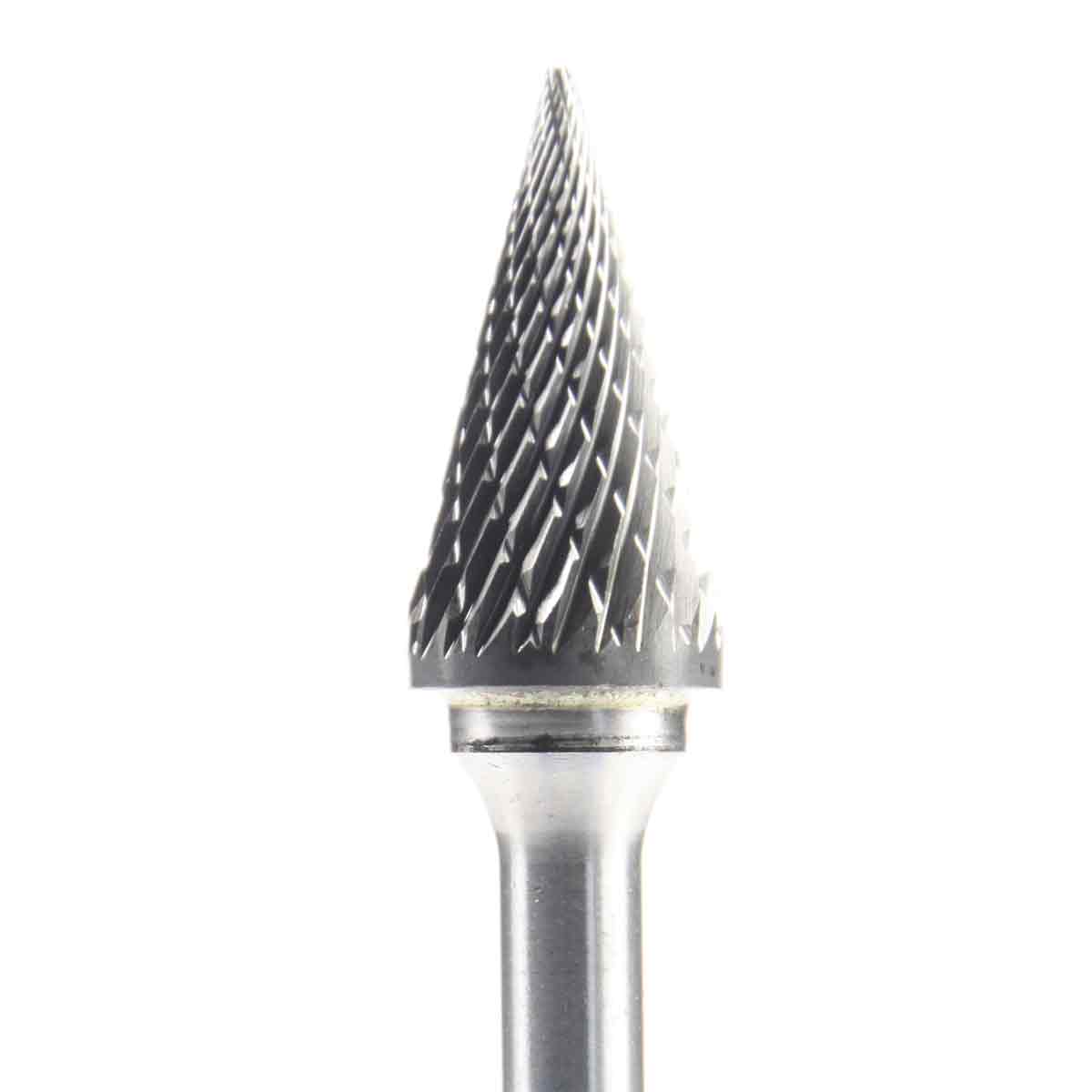

| 12.5mm | 25.4mm | 6mm | 70mm | HMC/M61222/6 |
What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables. And our full range of 80+ burrs organised by shape and size. Available here.
