Flame cut profile tungsten carbide burrs. Note: If you need the carbide burr to have a more rounded diameter end cut profile then you may wish to look at the Round Tree Burrs . Our flame cut carbide burrs are available in diamond cut form to suit your particular application. Diamond Cut Carbide Burrs – for stainless steel, steel, high carbon alloys, titanium, cobalt alloys etc.. and also for hardwoods.
Free UK shipping on all carbide burr orders.
For advice on speeds read our: Recommended Speed for Tungsten Carbide Burrs blog
The table below details all dimensions of our flame shaped carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.
Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.
| Diameter | Burr Length | Spindle | Overall Length | Part Number / Links |
| 3.0mm | 6mm | 3mm | 38mm | HMC/H30306/6 |
| 8.0mm | 19.2mm | 6mm | 64mm | HMC/H60820/6 |

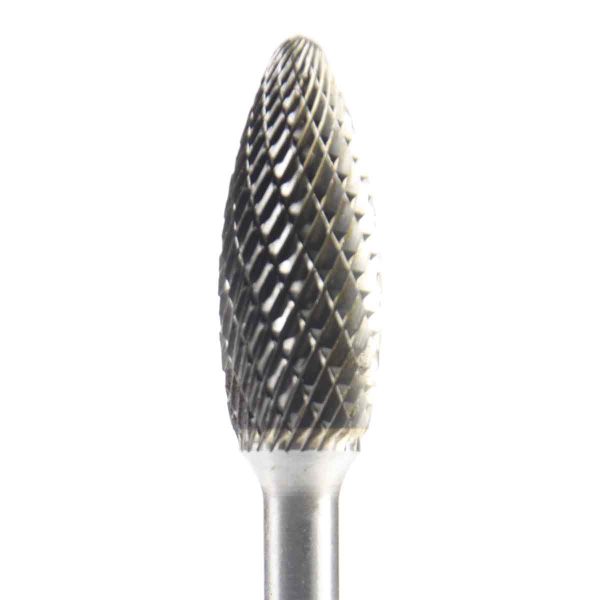

| 12.5mm | 31.8mm | 6mm | 77mm | HMC/H61232/6 |

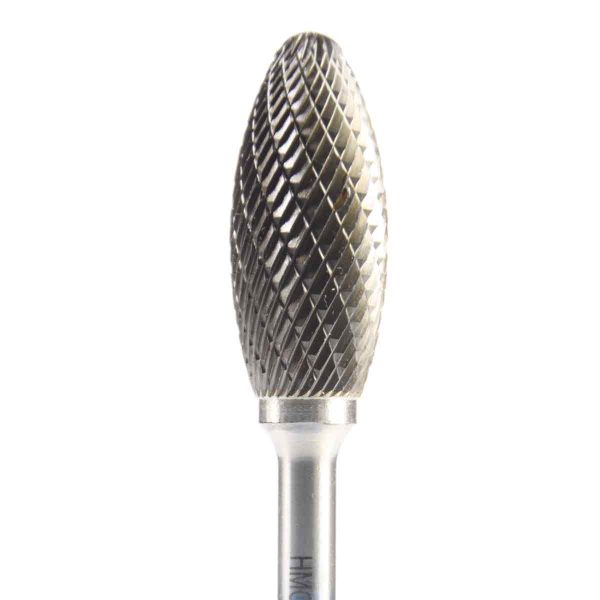

| 15.8mm | 36.5mm | 6mm | 82mm | HMC/H61535/6 |
What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables. And our full range of 80+ burrs organised by shape and size. Available here.
