Pointed Tree Carbide Burrs - Shape G

Pointed Tree Shaped Carbide Burrs – Shape G:

The table below details all dimensions of our round pointed tree carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.

Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.

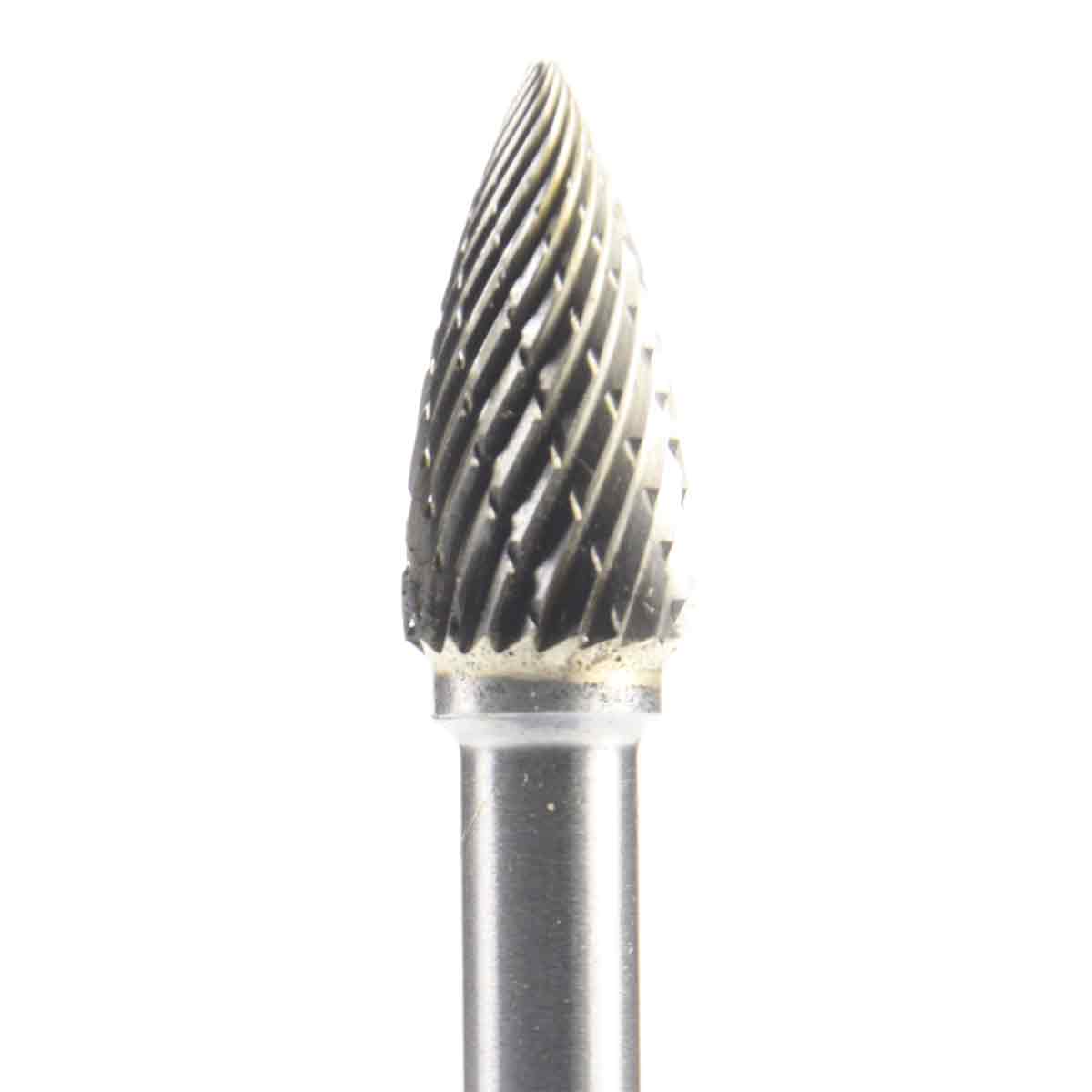

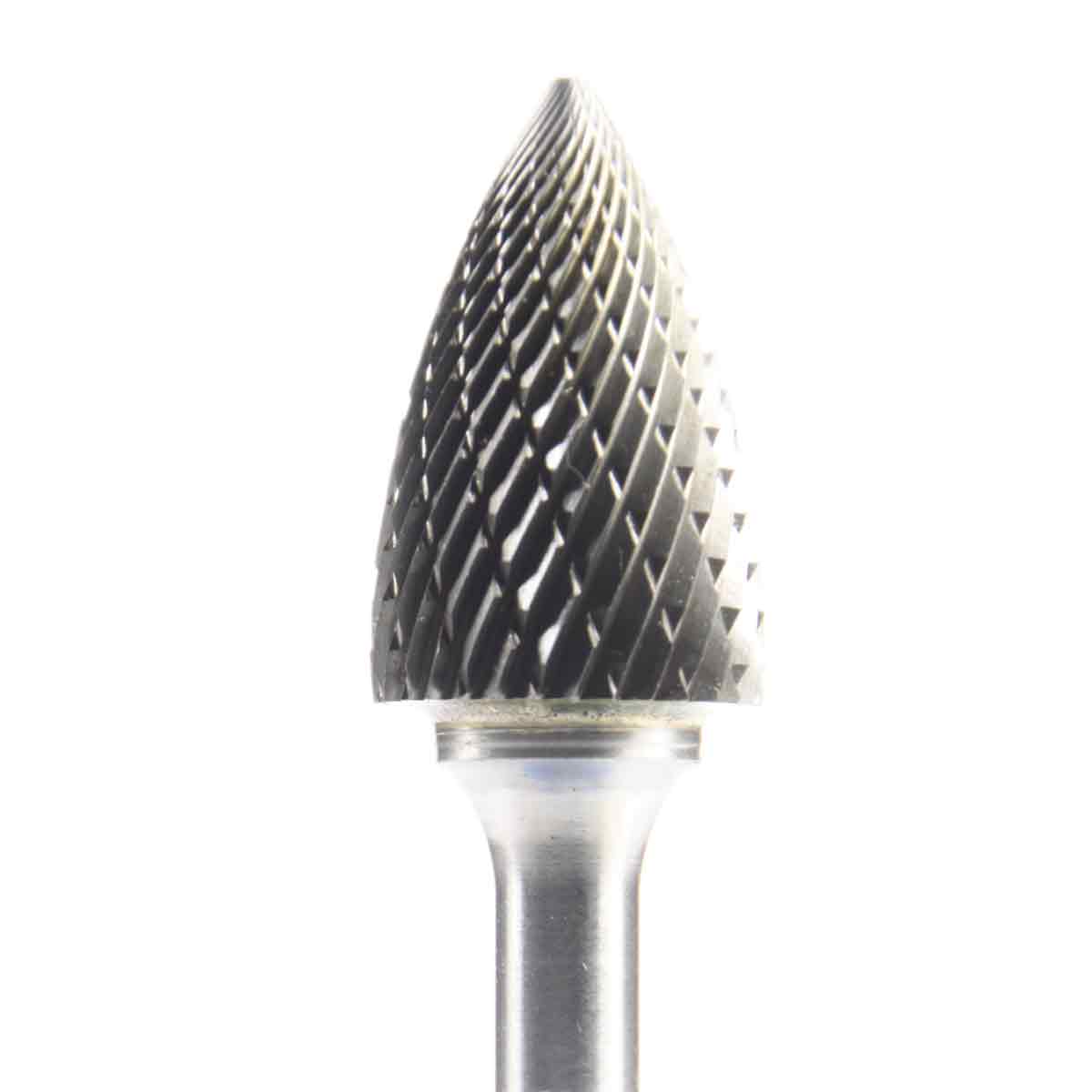

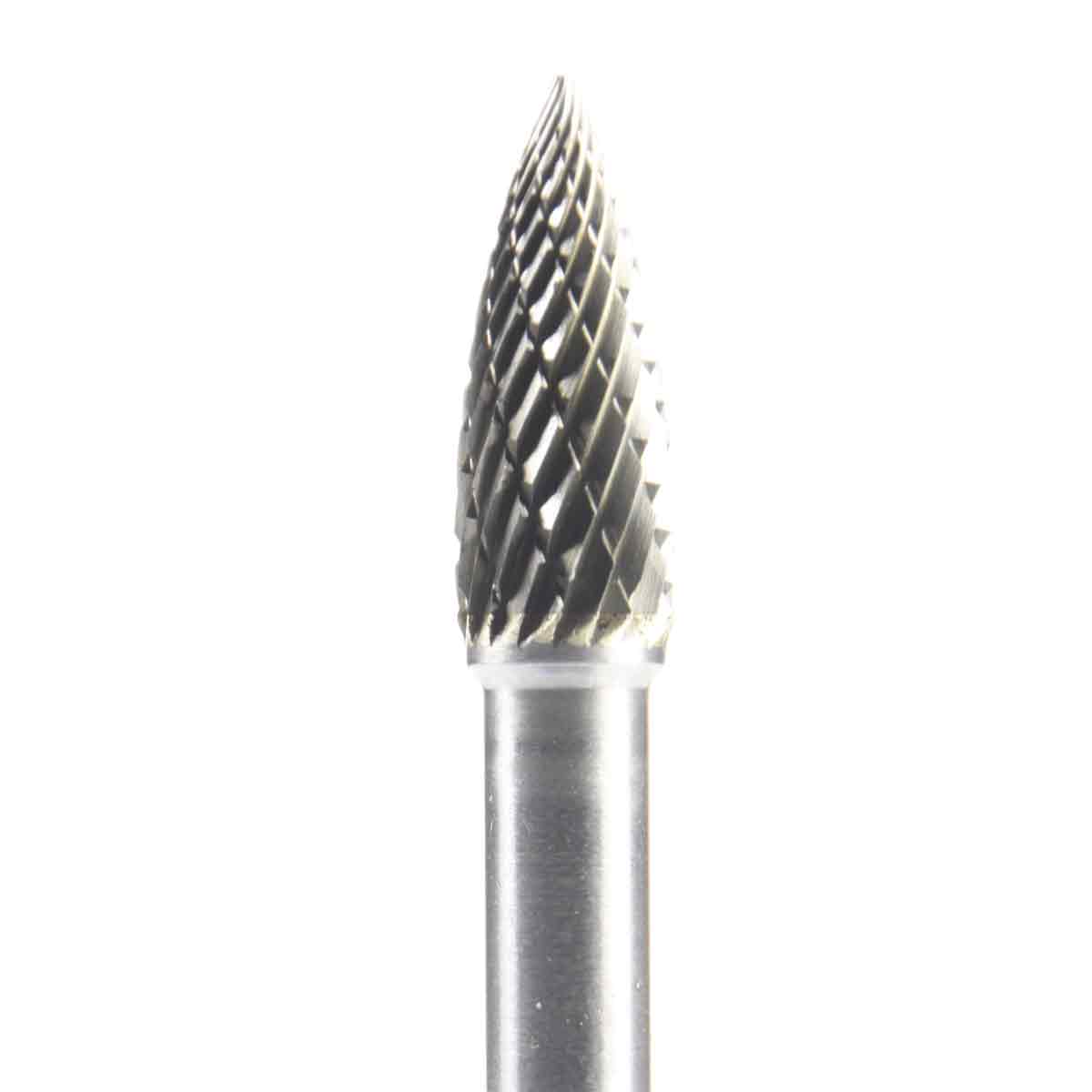

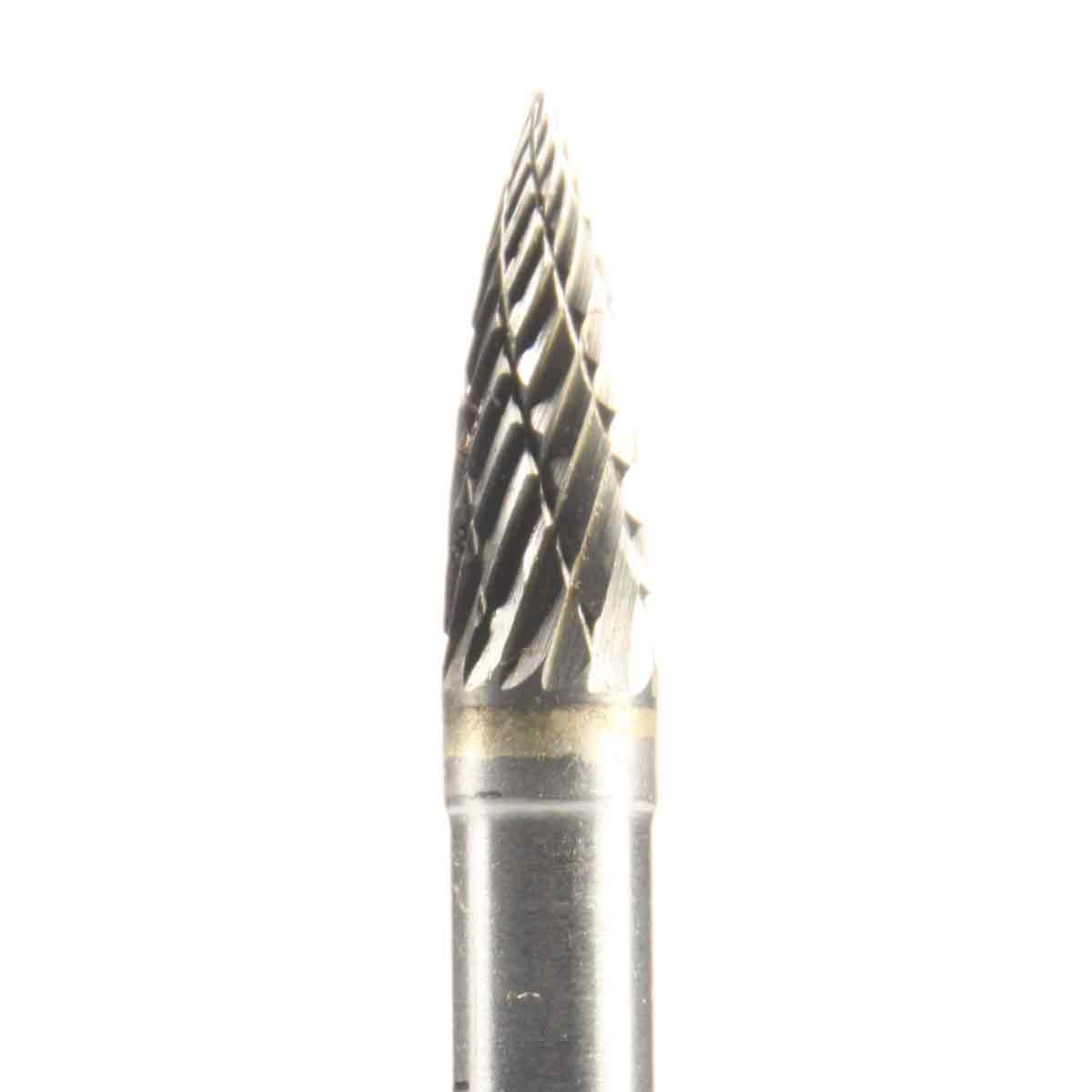

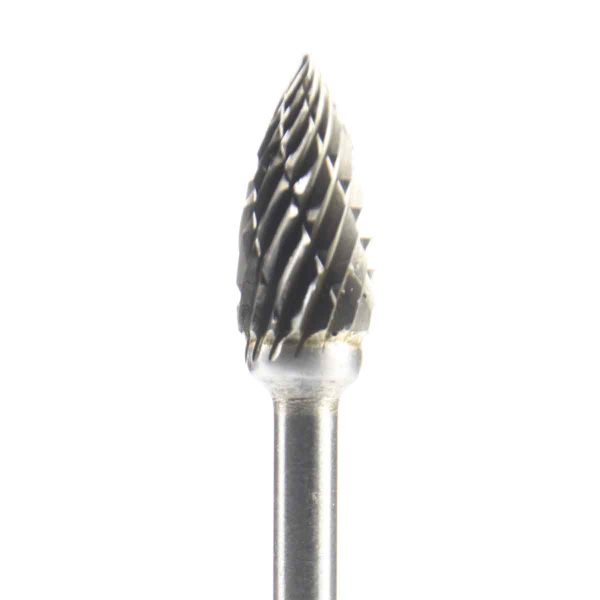

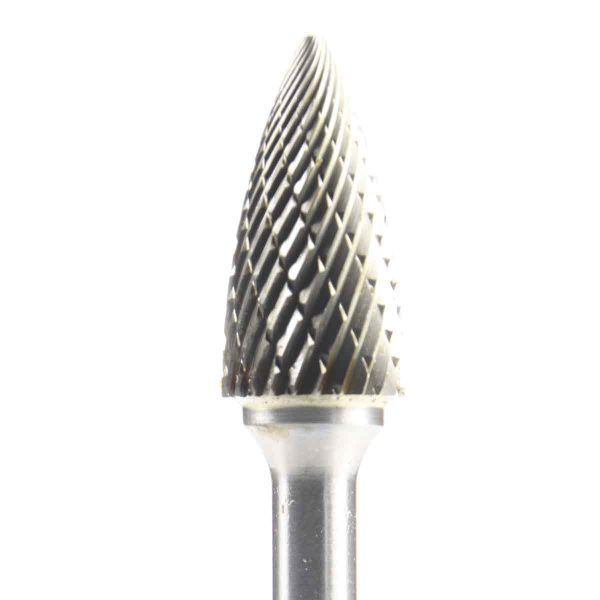

Diameter	Burr Length	Spindle	Overall Length	Part Number / Links
6.35mm	12.7mm	3mm	51mm	HMC/G30612/6
6.0mm	18mm	6mm	60mm	HMC/G60618/6
8.0mm	19.2mm	6mm	65mm	HMC/G60820/6
9.6mm	19.2mm	6mm	65mm	HMC/G61020/6
12.5mm	19.2mm	6mm	65mm	HMC/G61220/6
12.5mm	25.4mm	6mm	70mm	HMC/G61225/6
15.8mm	25.4mm	6mm	70mm	HMC/G61525/6

Abrasive Finishing Systems Carbide Burr Catalogue:

What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables.  And our full range of 80+ burrs organised by shape and size. Available here.
