Ball Nosed Cone Carbide Burrs – Shape L:
The table below details all dimensions of our ball nosed cone carbide burr range. If you know which burr you want, just click on the part number to be directed to the product page.
Helpful Tip – if the part number ends ‘/6’ then the burr has a diamond cut pattern. ‘/3’ is a fluted cut pattern.
Diameter | Burr Length | Spindle | Overall Length | Part Number / Links |

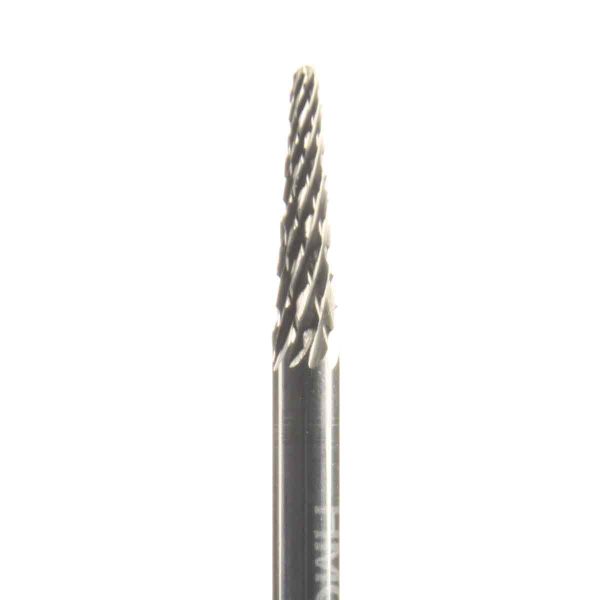

3.0mm | 14mm | 3mm | 38mm | HMC/L30312/6 |

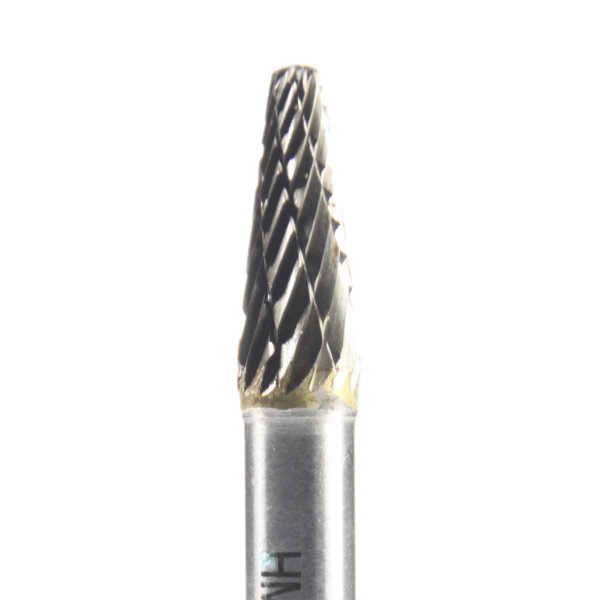

6.0mm | 16mm | 6mm | 50mm | HMC/L60618/6 |

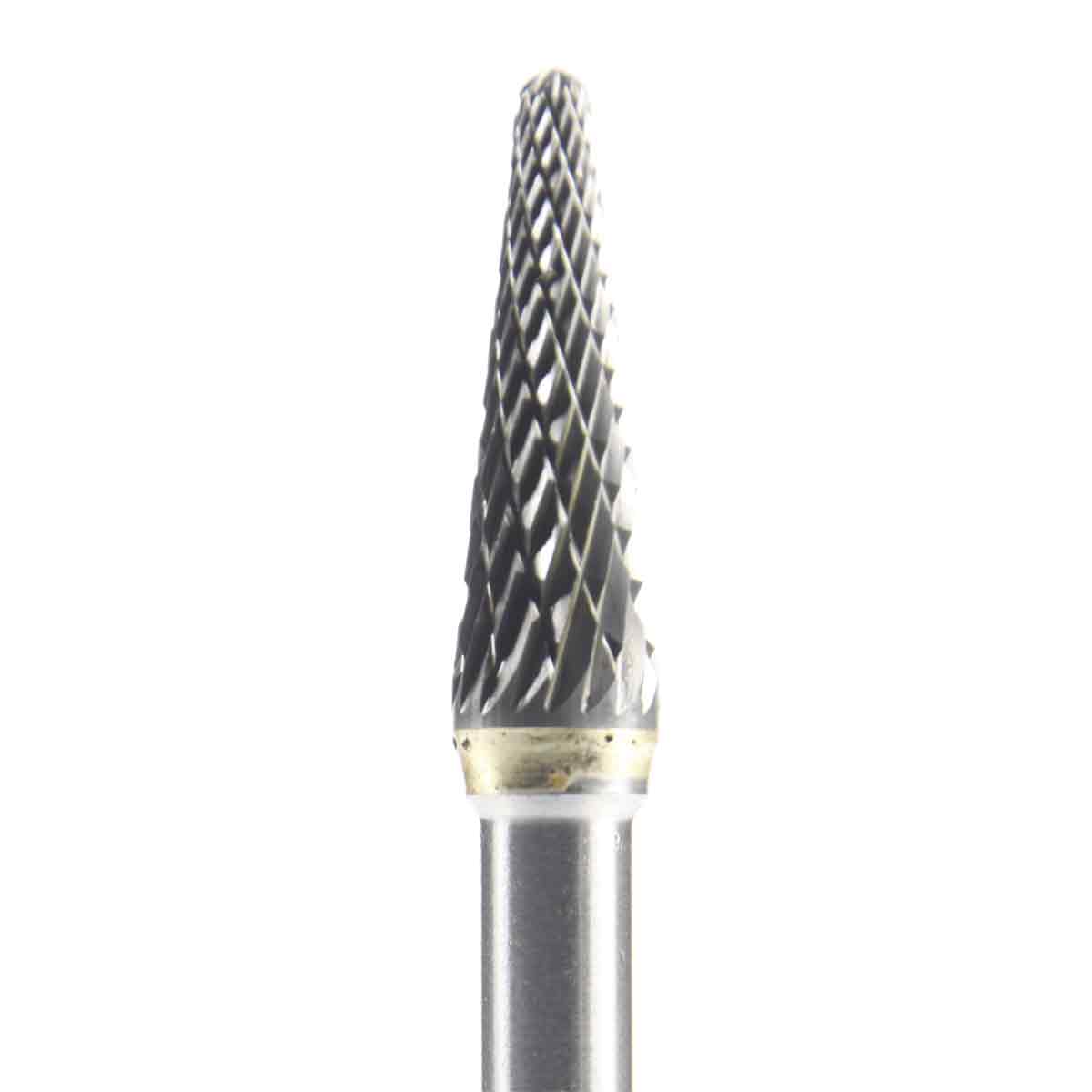

8.0mm | 22mm | 6mm | 70mm | HMC/L60822/6 |
9.6mm | 27mm | 6mm | 75mm | HMC/L61026/6 |

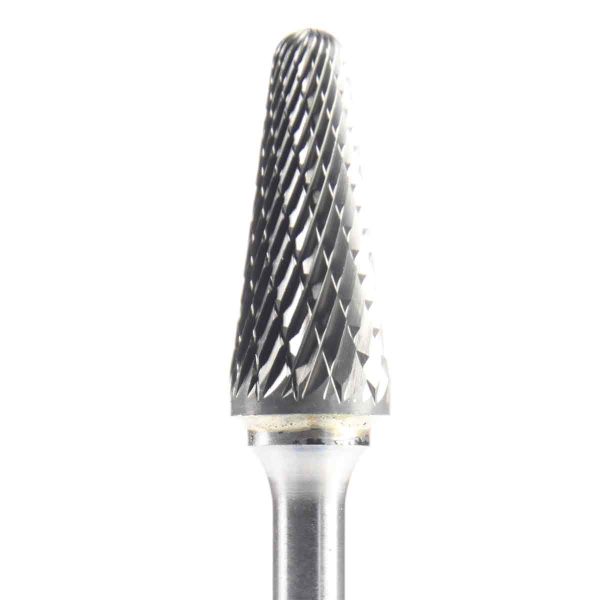

12.5mm | 28mm | 6mm | 77mm | HMC/L61228/6 |

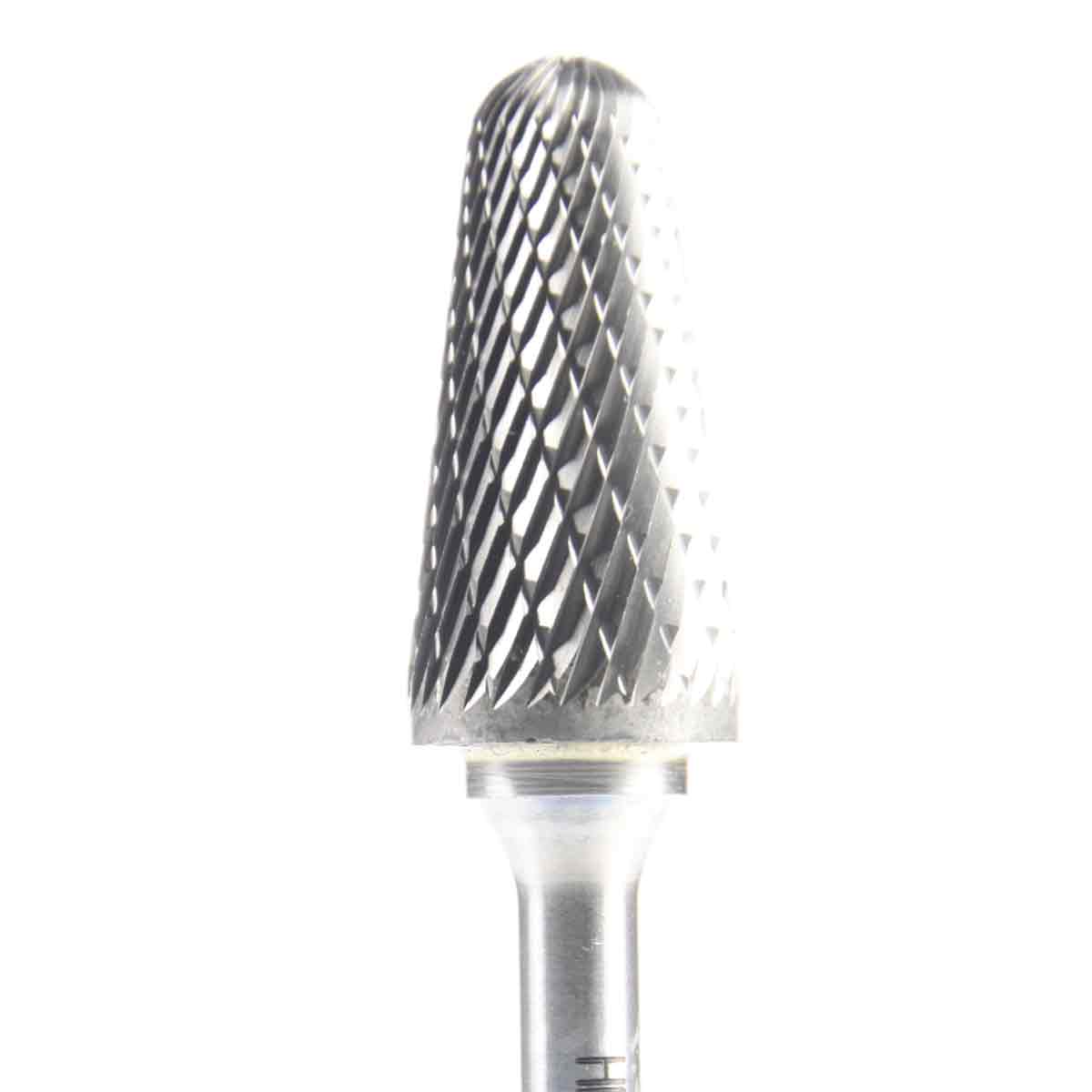

15.8mm | 33.3mm | 6mm | 78mm | HMC/L61533/6 |
Abrasive Finishing Systems Carbide Burr Catalogue:
What’s inside? A guide on how to choose the best cutting shape for you. Recommendations for use. Cutting speed tables. And our full range of 80+ burrs organised by shape and size. Available here.
