Tris Centreless Tube Polisher
Tris Centreless Tube Polisher
Tris Centreless Tube Polisher

In Stock

Qty
Request More Information
SKU: GA/TRIS
Suitable for processing tube from 10 to 80mm diameter.

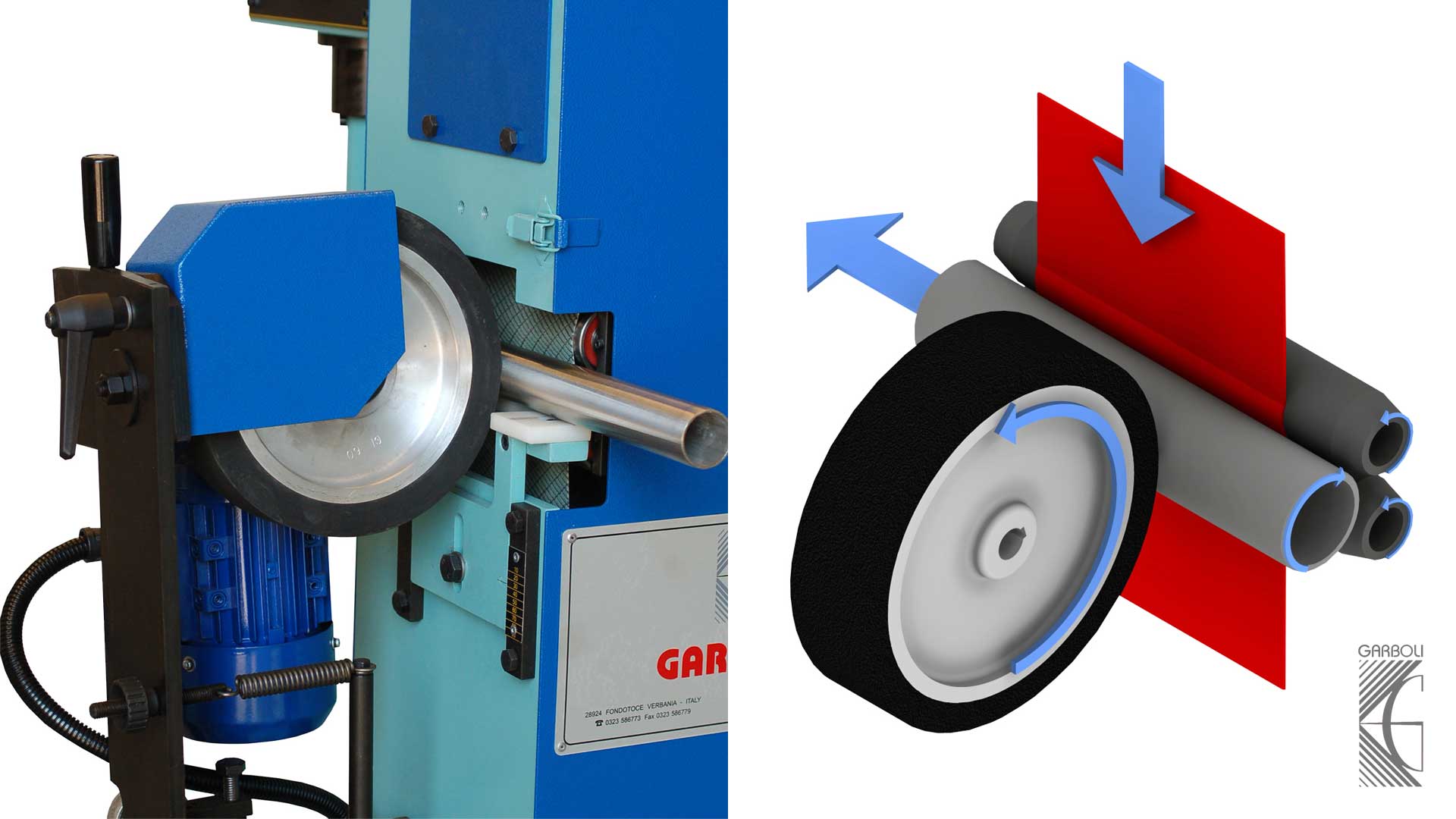

The Garboli TRIS centreless abrasive belt grinding machine is driven by a powerful 3.0Kw motor designed to provide all the power and torque needed to just keep working.

Available options:

– Variable speed control unit.

–  Short length feed system for tubes 20mm in length and longer

–  Deburring and platen grinding workface

The Garboli TRIS is designed to work with straight tubes in a range of metals including stainless steel



Belt dimensions 2180 x 140mm

Tube specifications:
-  Minimum Tube Diameter 10mm
-  Maximum Tube Diameter 80mm

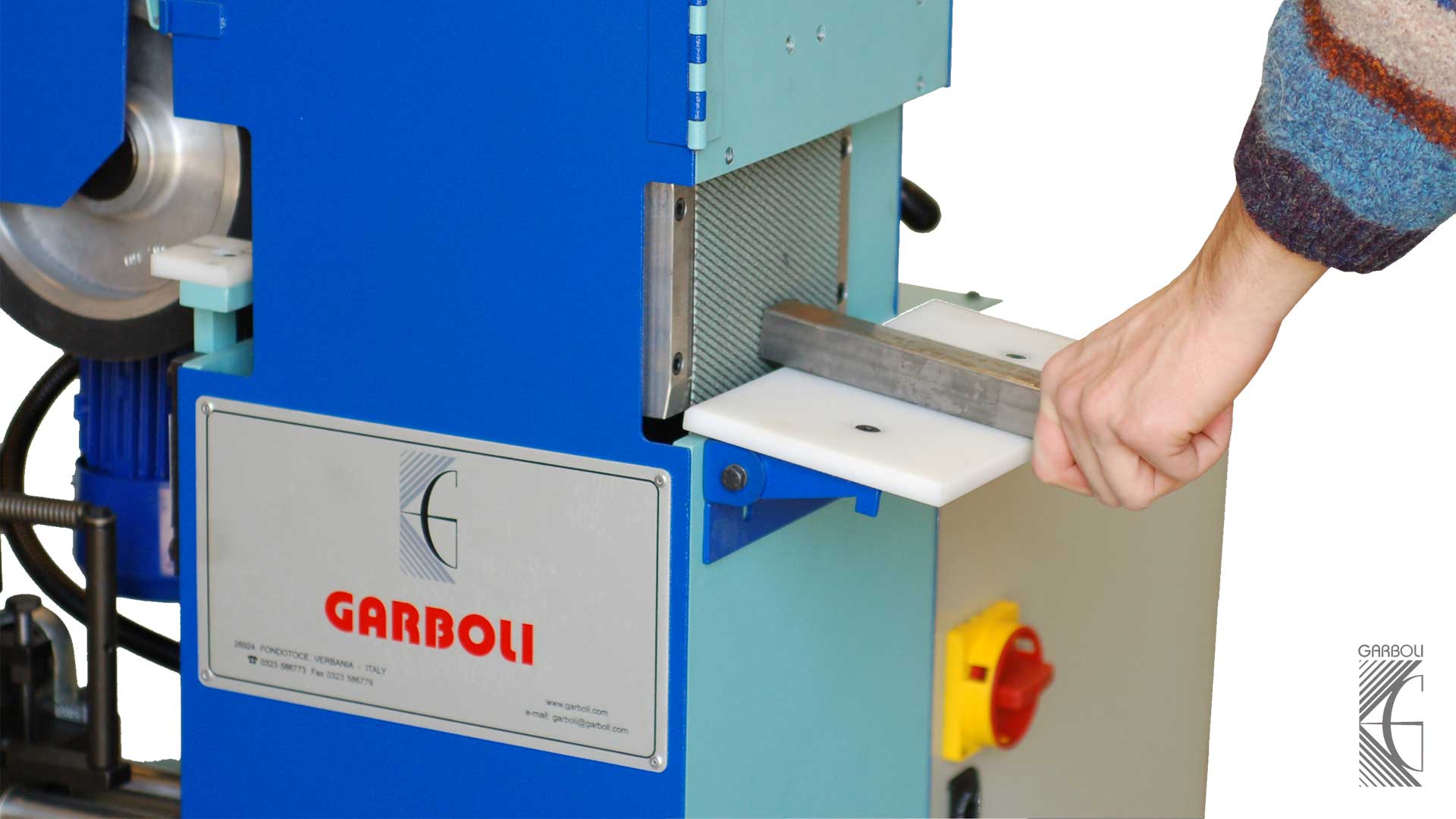

-  Optional platen for deburring /chamfering flat parts

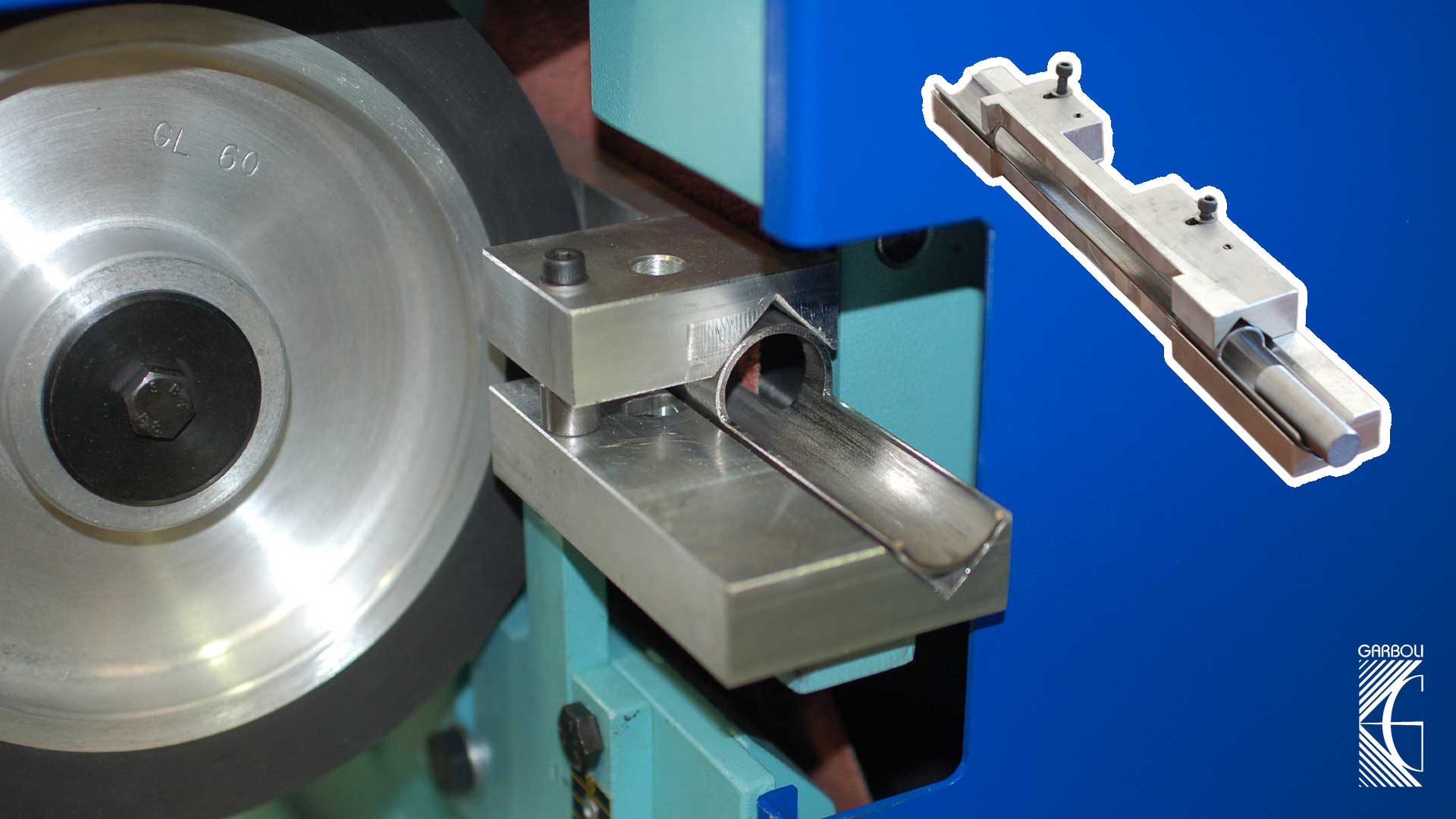

-  Modification available to finish short length components from 12mm to 40mm in length


Feed speed: from 1 to 10m/min

Motor Specifications:
-  Jockey wheel motor = 0.09 Kw
-  Abrasive belt motor = 3.0 Kw
-  Voltage = 400v, 50Hz

Net weight = 220Kg
Dimensions = 123 x 136 x 155cm (l x w x h)
