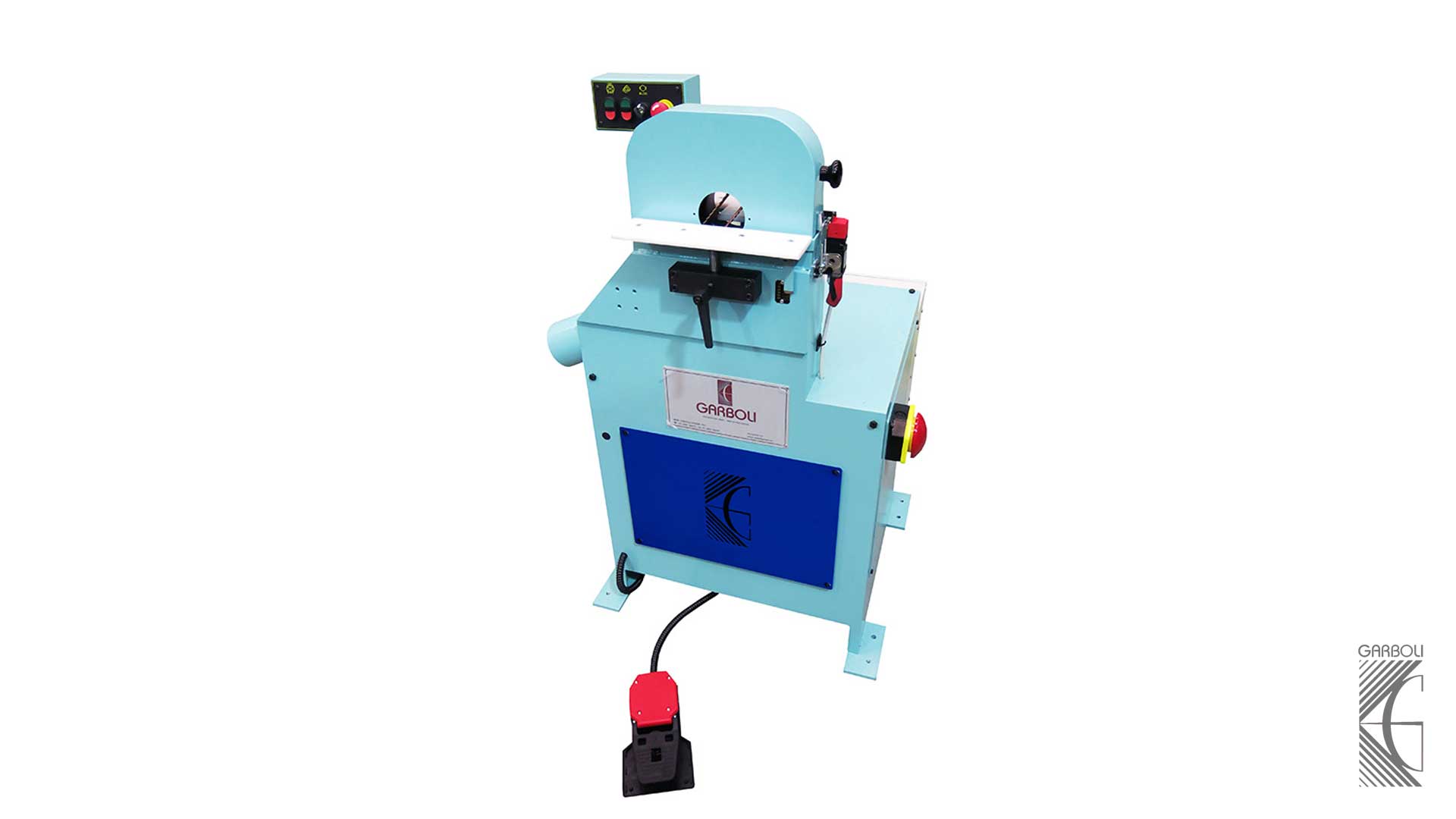

LPC160VS narrow head tube polisher

In Stock

Qty
Request More Information
SKU: GA/LPC160VS
Narrow head orbital tube polisher.  Tube from 5 to 50mm diameter.

The Garboli LPC160VS is the narrow head version of the Garboli LPC160 tube and pipe polisher for finishing architectural hardware such as aluminium and stainless steel door furniture.  The VS head is designed to work with particularly tight radii.

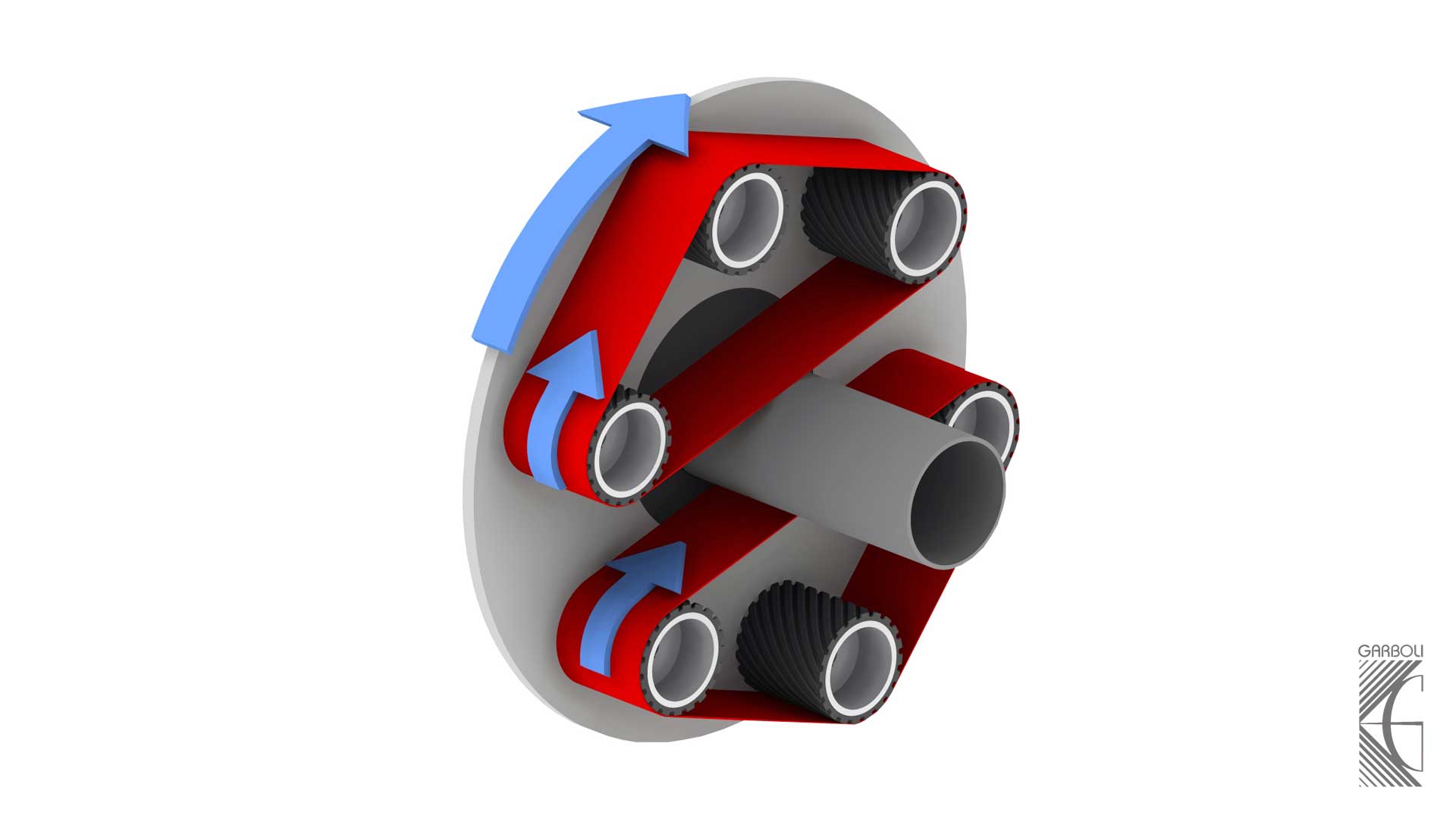

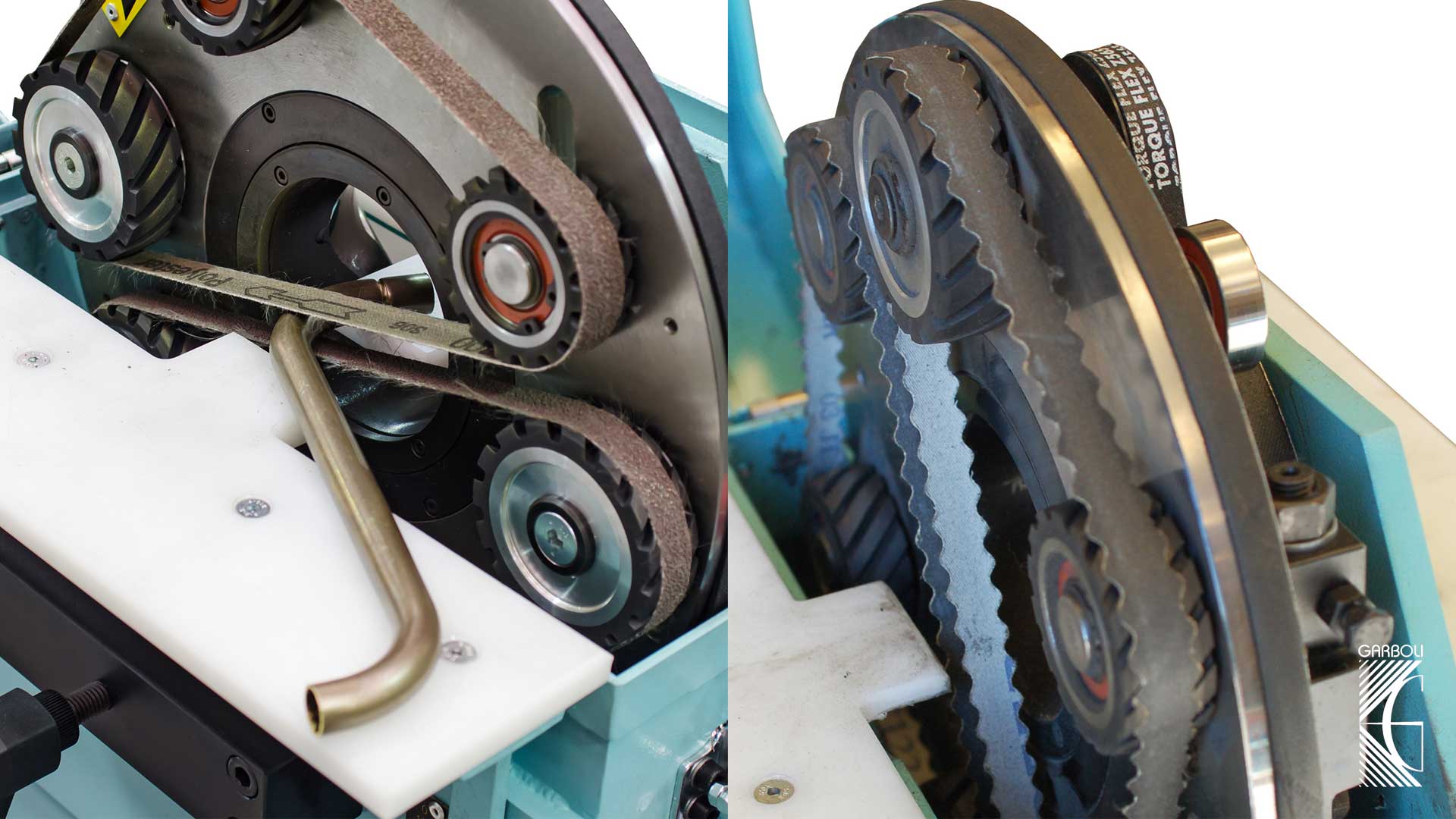

The orbital sanding process was originally developed by Garboli for the sanding of cane furniture but it is now the number one process for sanding and polishing stainless steel tube & bar as it can sand and polish straight and bent tube with equal simplicity. The heart of the LPC160 is a powerful rotating disc through which the tube or round bar is passed. Mounted onto this disc is a pair of abrasive belts which are powered by a separate motor, the belts can be adjusted to suit varying tube diameters.  When the abrasive belt motor starts the belts close in on the workpiece.  This simple construct allows for the tube to be moved in any direction and at any speed through the Garboli LPC160VS machine.

Options for the Garboli LPC160VS machine:

– Variable speed control

– Fully manual feed.  Ideal for one off and complex shape sanding

–  ADN Through feed. Powered feed rollers which can operate with tube from 10mm to 50mm in diameter. The ADN roller systems can be moved to the side for bent tube sanding and polishing

–  Multi pass feed options. Garboli use the Siemens control systems to allow for complex multi-pass processing if required

–  Fully automatic feed and tube capture systems for straight tubes

–  Varying tube thickness.  The tube polishing system on the LPC160VS is self-centering allowing for the feeding of tube of varying diameter through the polishing head

–  Bespoke build.  Garboli can make many options from fully automatic feed in and loading tables to simple through feed roller options.

–  Wet or dry processing options

–  Wave edge or straight edge abrasive belt construction to ensure the perfect finish every time

Popular applications for the LPC160VS:

–  Aluminium and stainless steel door furniture

–  Taps and faucets sanding and pre-polishing

–  bicycle frame sanding

–  Marine fixtures and fittings

–  Brass fittings

Need to test your products?

We stock a Garboli LPC300 and an LPC160 MIRROR demonstration machine on site at our premises in North Yorkshire where we can test samples and optimise your finishing process.

Abrasive Belt Dimensions

-  Straight edge belts 622 x 15mm


Customer Tube Specification:
Minimum bend radius for a 90 degree bend = 1.2 x tube diameter
Minimum tube diameter = 5mm
Maximum tube diameter = 50mm

Note:  The minimum bend radius varies dependent on the overall angle of the bend

Motor Specifications:
Planetary Disc motor = 1.1Kw
Abrasive Belt motor = 2.2Kw
Voltage = 400v, 50Hz

Belt speed:
Fixed speed = 22 m/s
Variable speed = 14 - 30 m/s (optional extra)

Net weight = 185Kg
Dimensions = 90 x 100 x 125cm (l x w x h)


CE Certification on all Garboli tube polishing machines
