LPC300 Orbital Tube Sanding & Polishing Machine

In Stock

Qty
Request More Information
SKU: GA/LPC300
Orbital tube sander & polisher.  Suitable for processing tube from 5 to 114mm diameter.

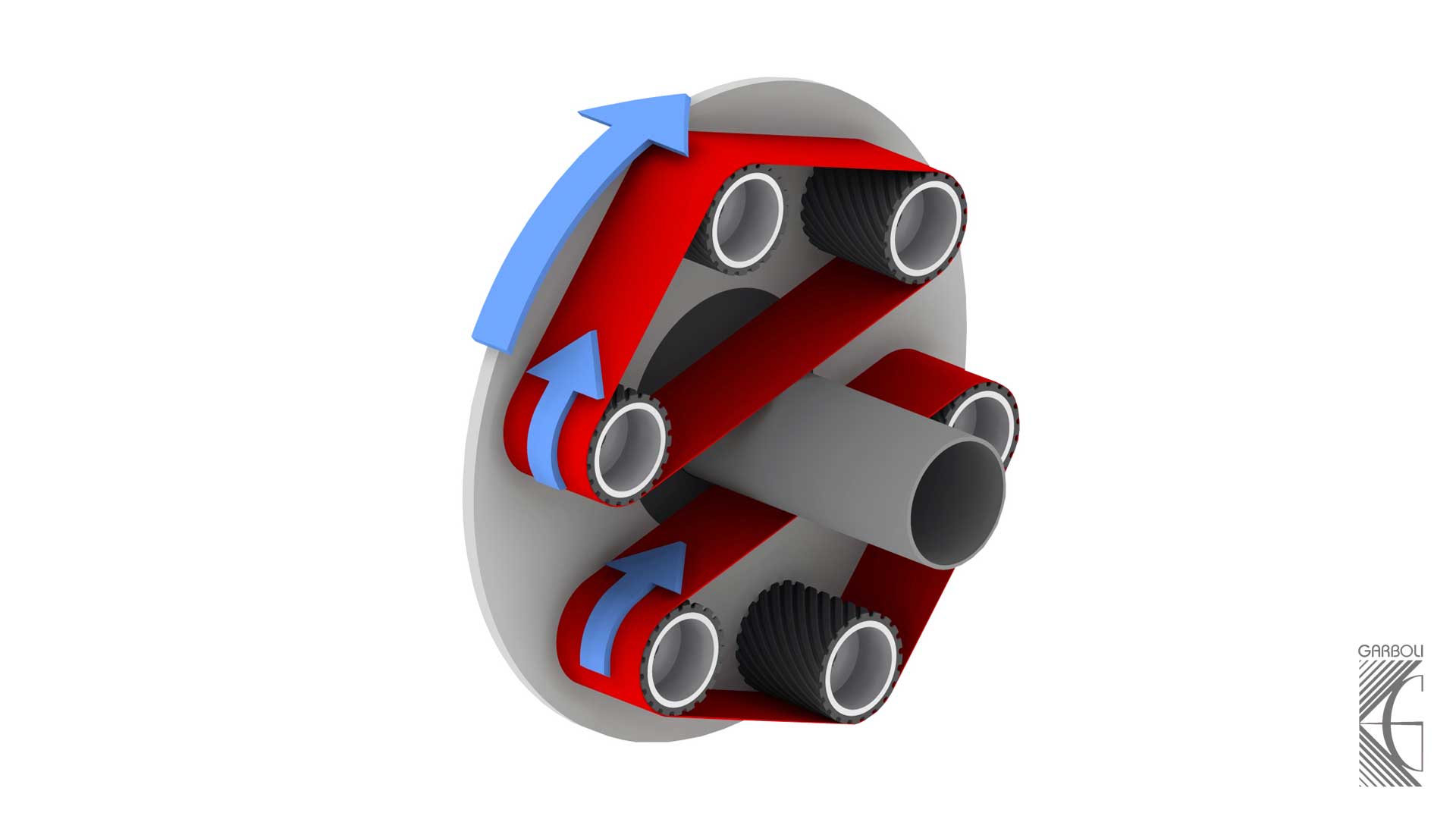

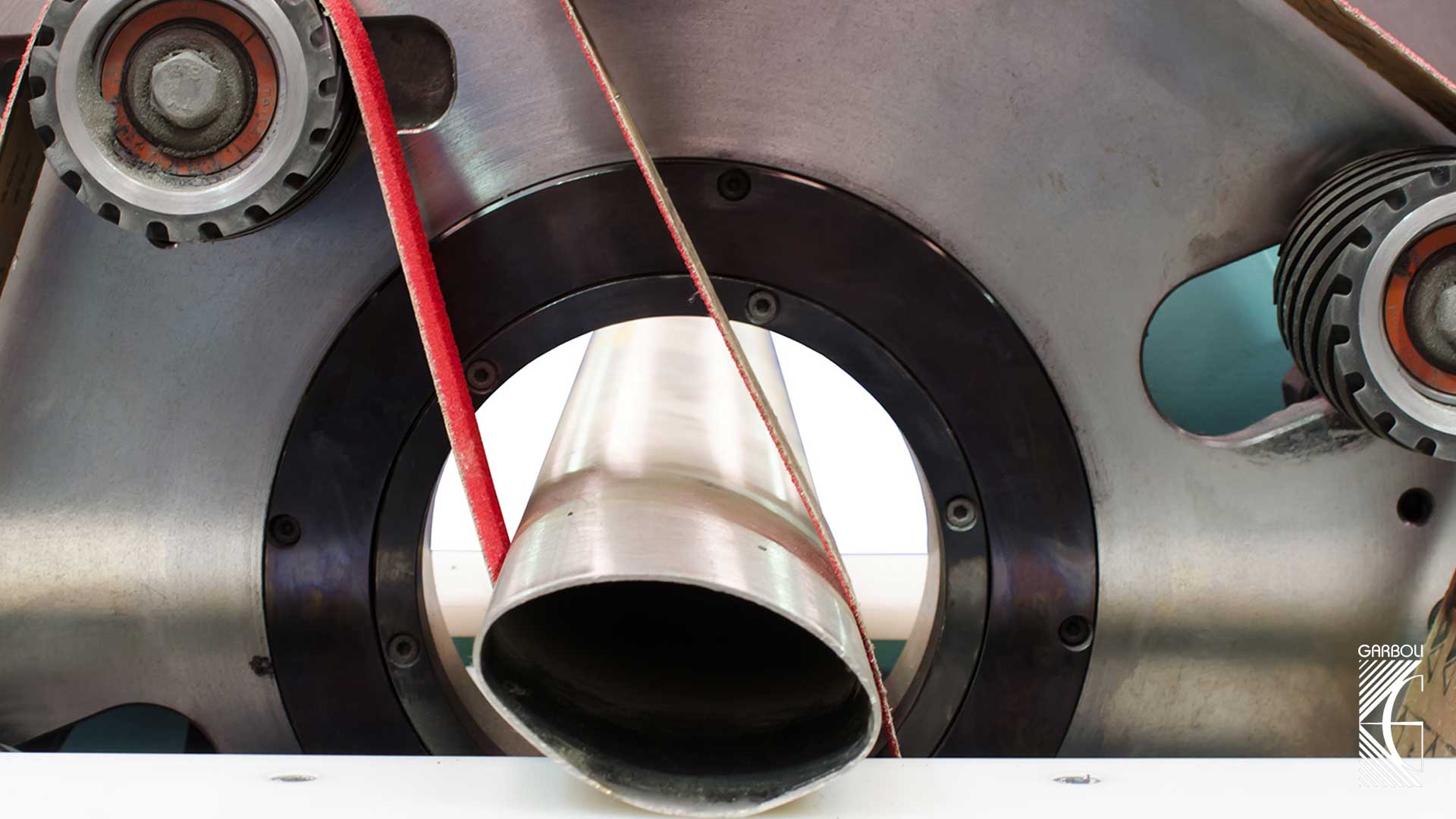

The Garboli LPC300 is the most popular tube and pipe polisher for the stainless steel fabricator.  The orbital sanding process was originally developed by Garboli for the sanding of cane furniture but it is now the number one process for sanding and polishing stainless steel tubes as it can sand and polish straight and bent tube with equal simplicity. The heart of the LPC300 is a powerful rotating disc through which the tube or round bar is passed. Mounted onto this disc is a pair of abrasive belts which are powered by a separate motor, the belts can be adjusted to suit varying tube diameters.  When the abrasive belt motor starts the belts close in on the workpiece.  This simple construct allows for the tube to be moved in any direction and at any speed through the Garboli LPC300 machine.

Options for the Garboli LPC300 machine:

–  Variable speed control

–  Fully manual feed.  Ideal for one off and complex shape sanding

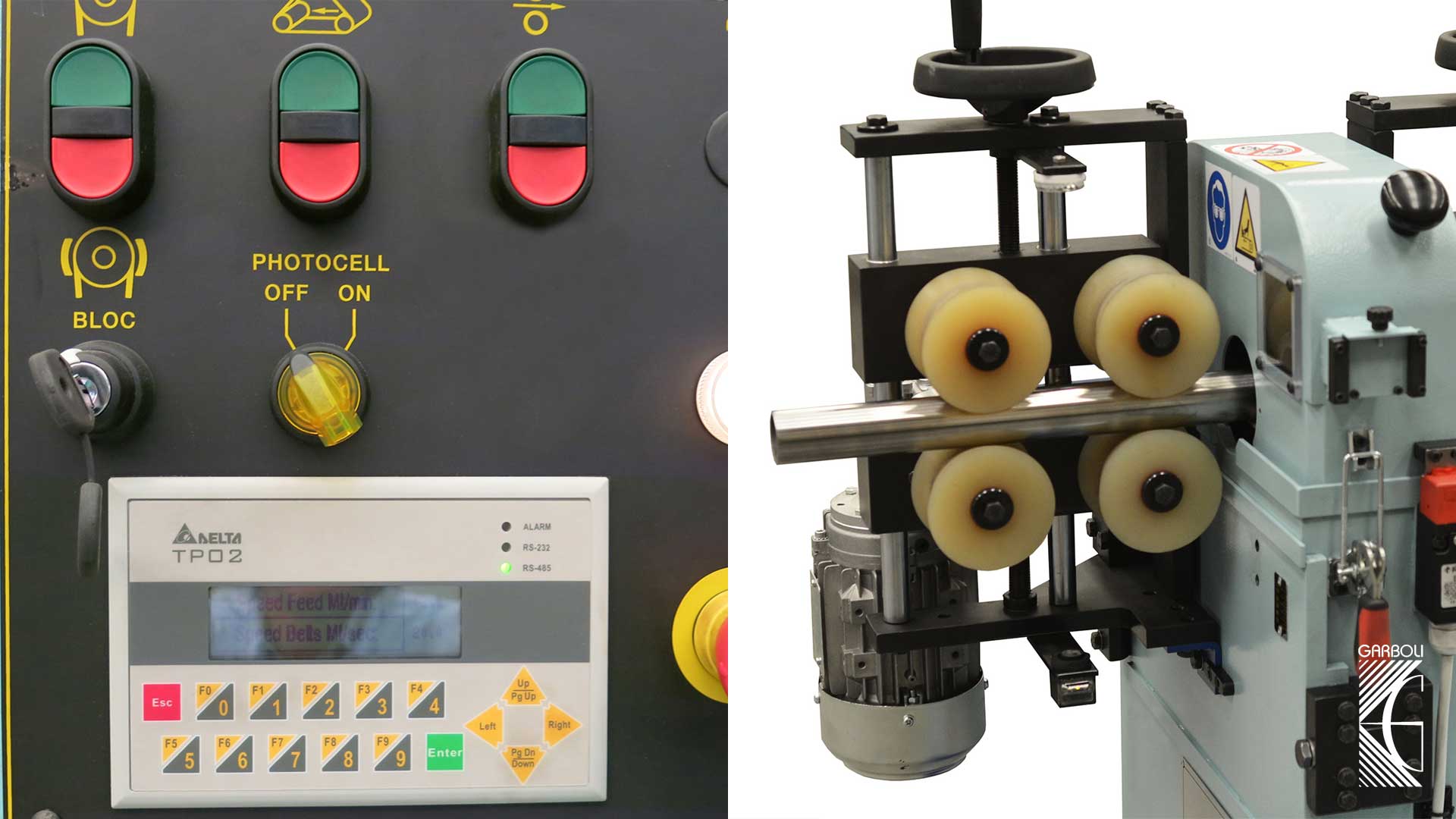

–  ADN Through feed. Powered feed rollers which can operate with tube from 5mm to 114mm in diameter.  The ADN roller systems can be moved to the side for bent tube sanding and polishing

–  Multi pass feed options. Garboli use the Siemens control systems to allow for complex multi-pass processing if required

–  Fully automatic feed and tube capture systems for straight tubes

–  Varying tube thickness.  The tube polishing system on the LPC300 is self-centering allowing for the feeding of tube of varying diameter through the polishing head

–  Bespoke build.  Garboli can make many options from fully automatic feed in and loading tables to simple through feed roller options.

–  Wet or dry processing options

–  Wave edge or straight edge abrasive belt construction to ensure the perfect finish every time

Popular applications for the LPC300:

–  Wire drawing

– Aerospace engine pipe manufacturing

–  Plastic tube preparation

– Steel shaft dressing and sanding

–  bicycle frame sanding

–  Marine handrails, pushpit & pulpit polishing

–  Brass towel rail polishing

– Bollards & street furniture

–  Power steering rack refurbishing

Need to test your products?

We stock a Garboli LPC300 demonstration machine on site at our premises in North Yorkshire where we can test samples and optimise your finishing process.

Abrasive Belt Dimensions

-  Straight edge belts 940 x 60mm

-  Wave edge belts 940 x 50mm (particularly useful for complex bends and shapes)

Customer Tube Specification:


Minimum bend radius for a 90 degree bend = 1.5 x tube diameter (in mm)

Minimum bend radius for a 180 degree bend = 150mm
Minimum tube diameter = 5mm
Maximum tube diameter = 110mm

Note:  The minimum bend radius varies dependent on the overall angle of the bend

Motor Specifications:


Planetary Disc motor = 1.5 Kw
Abrasive Belt motor = 3.0 Kw
Voltage = 400v, 50Hz

Belt speed:


Fixed speed = 22 m/s
Variable speed = 14 - 30 m/s (optional extra)

Net weight = 270Kg
Dimensions = 100 x 100 x 126 cm (l x w x h)


CE Certification on all Garboli tube polishing machines
