LT130 through feed tube sanding mill – max tube dia 127mm

In Stock

Qty
Request More Information
SKU: GA/LT130
Orbital tube grinder for straight tubes. Max diameter 127mm.

The Garboli LT series of through feed orbital tube polishers are designed for the high volume through feed sanding and polishing of tubes.

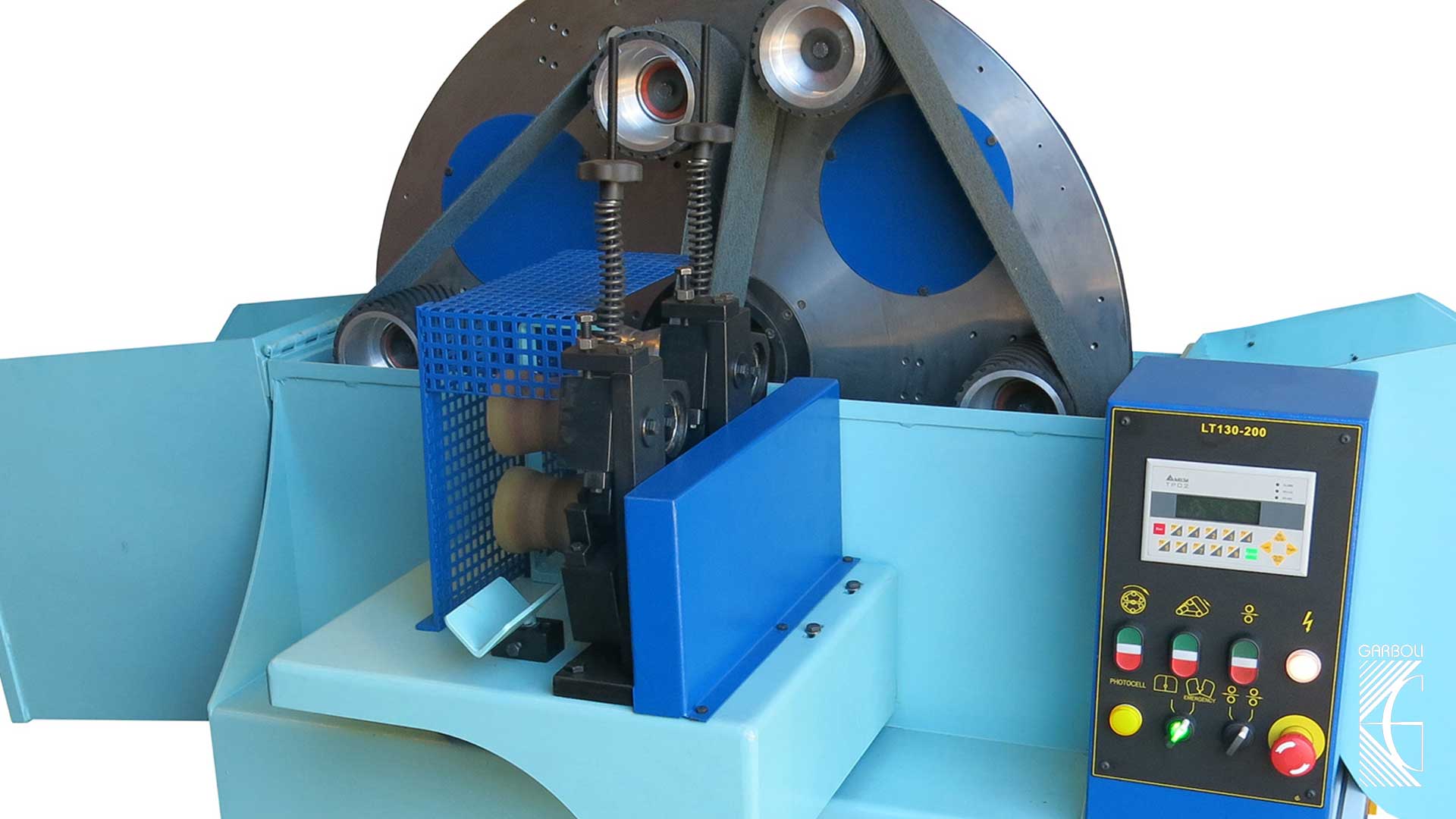

The heart of the LT130 is a powerful rotating disc through which the tube or round bar is passed. Mounted onto this disc is a pair of abrasive belts which are powered by a separate motor, the belts can be adjusted to suit varying tube diameters.  When the abrasive belt motor starts the belts close in on the workpiece.  This simple construct allows for the tube to be moved in any direction and at any speed through the Garboli LT130 machine.

Options for the Garboli LT130 machine:

–  Variable speed control

–  Fully manual feed.  Ideal for one off and complex shape sanding

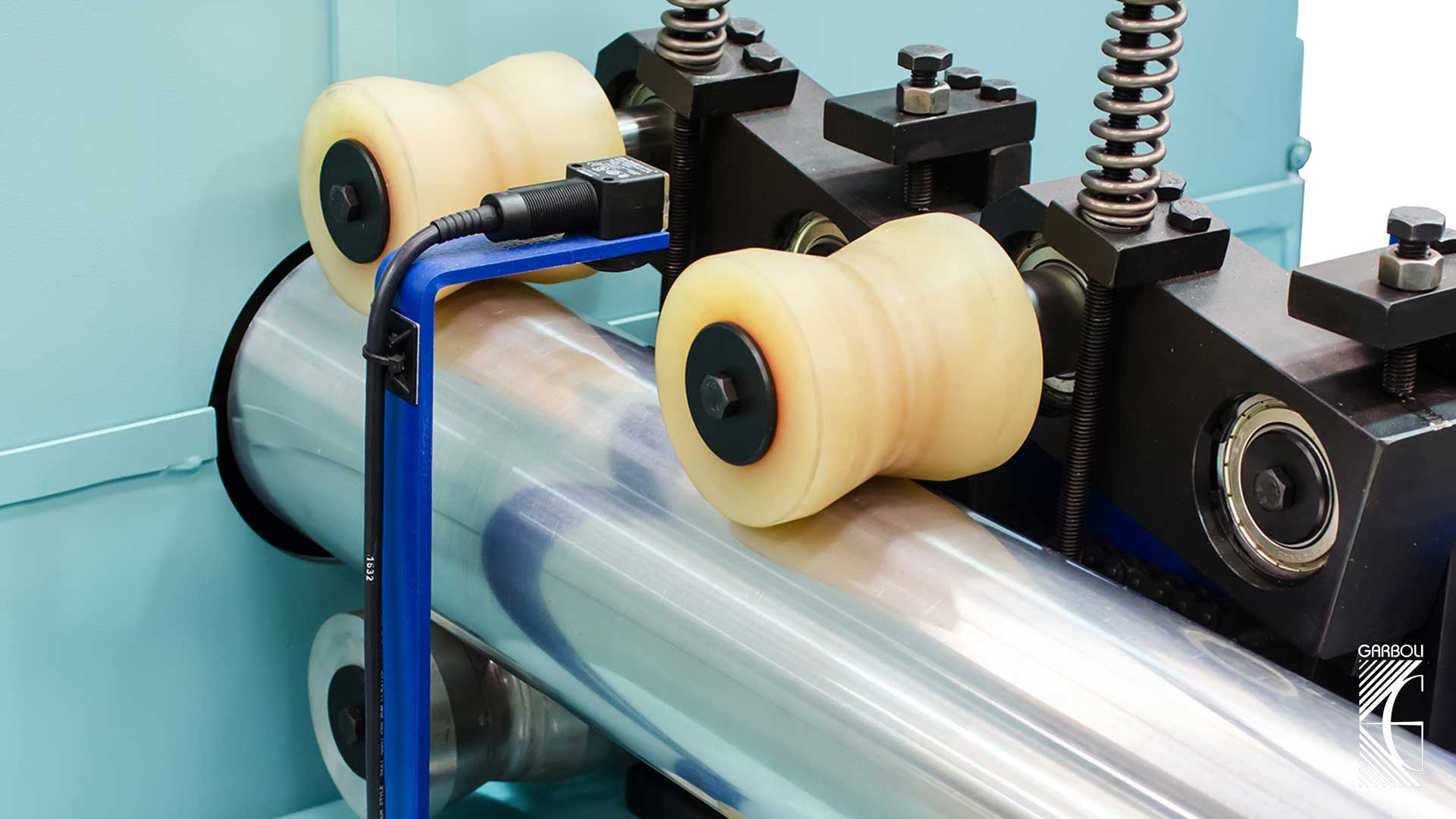

–  Powered feed rollers which can operate with tube from 10mm to 203mm in diameter.

–  Multi pass feed options. Garboli use the Siemens control systems to allow for complex multi-pass processing if required

–  Fully automatic feed and tube capture systems for straight tubes

–  Varying tube thickness.  There is an option for a self-centering tube feed system on the LT130 allowing for the feeding of tube of varying diameter through the polishing head

–  Bespoke build.  Garboli can make many options from fully automatic feed in and loading tables to simple through feed roller options.

–  Wet or dry processing options

–  Wave edge or straight edge abrasive belt construction to ensure the perfect finish every time

Popular applications for the LT130:

–  Steel shaft dressing and sanding

–  Street furniture

–  Pipe sanding and finishing

– Bollards & street furniture

Need to test your products?

We stock a Garboli LPC300 demonstration machine on site at our premises in North Yorkshire where we can test samples and optimise your finishing process.

Abrasive Belt Dimensions:  2000 x 120mm


Customer Tube Specification:
- Minimum tube diameter = 10mm

-  Maximum tube diameter = 127mm

-  Tube Length - Minimum 420mm
-  Tube length - Maximum 6000mm


Motor Specifications:
- Planetary Disc motor = 2.2Kw
- Abrasive Belt motor = 5.5Kw

-  Feed in motors = 2 x 0.25Kw
-  Voltage = 400v, 50Hz

Belt speed:
- Fixed speed = 22 m/s
-  Variable speed = 14 - 30 m/s (optional extra)


Tube Feed Speed:

- 1 - 20 m/minute


Net weight = 710Kg
Dimensions = 135 x 152 x 155cm (l x w x h)


CE Certification on all Garboli tube polishing machines
