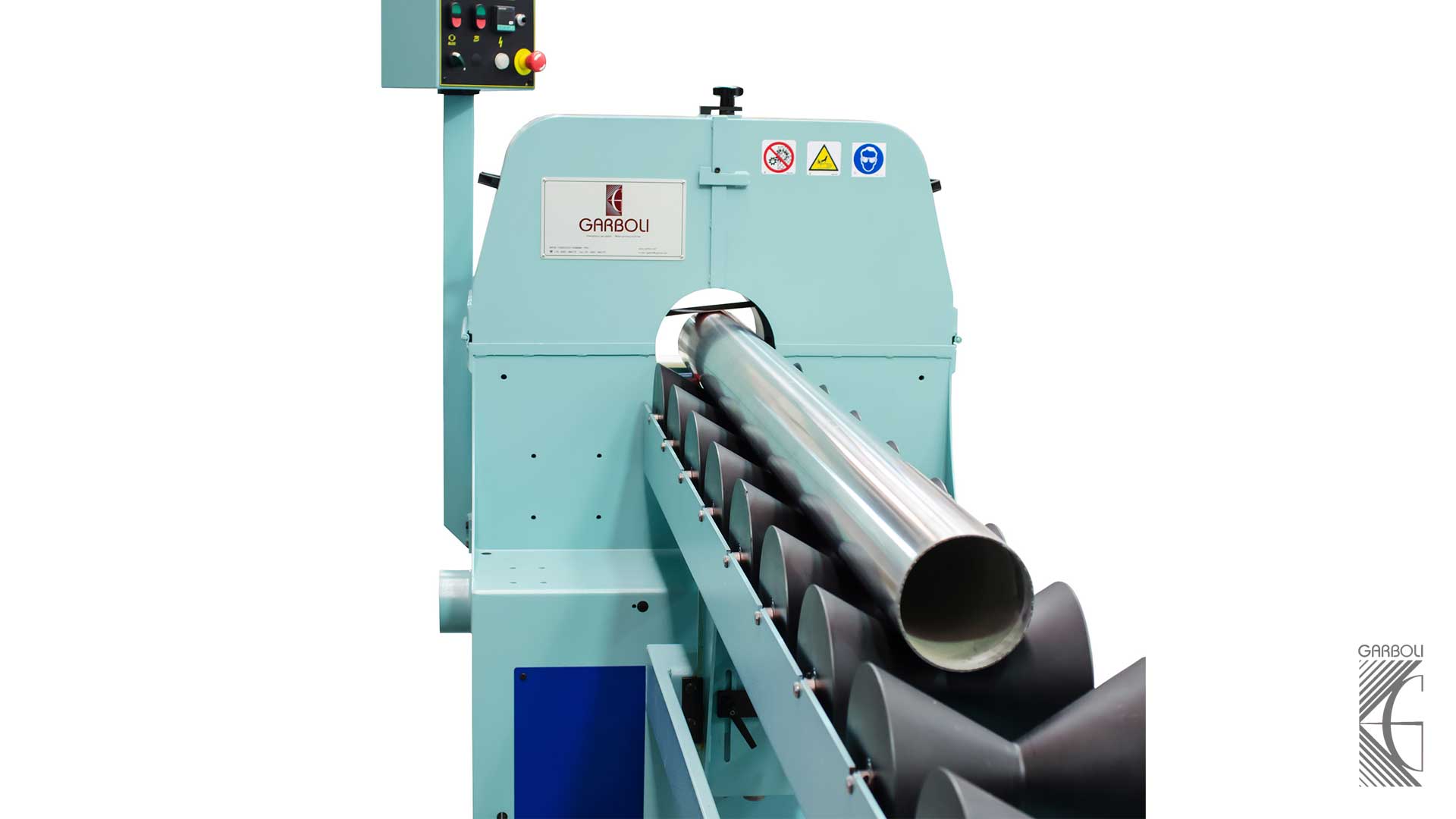

LT200 through feed orbital polisher – max tube dia 203mm

In Stock

Qty
Request More Information
SKU: GA/LT200
Orbital tube grinder straight tubes.  Max tube diameter 203mm.

The Garboli LT series of through feed orbital tube polishers are designed for the high volume through feed sanding and polishing if tubes.

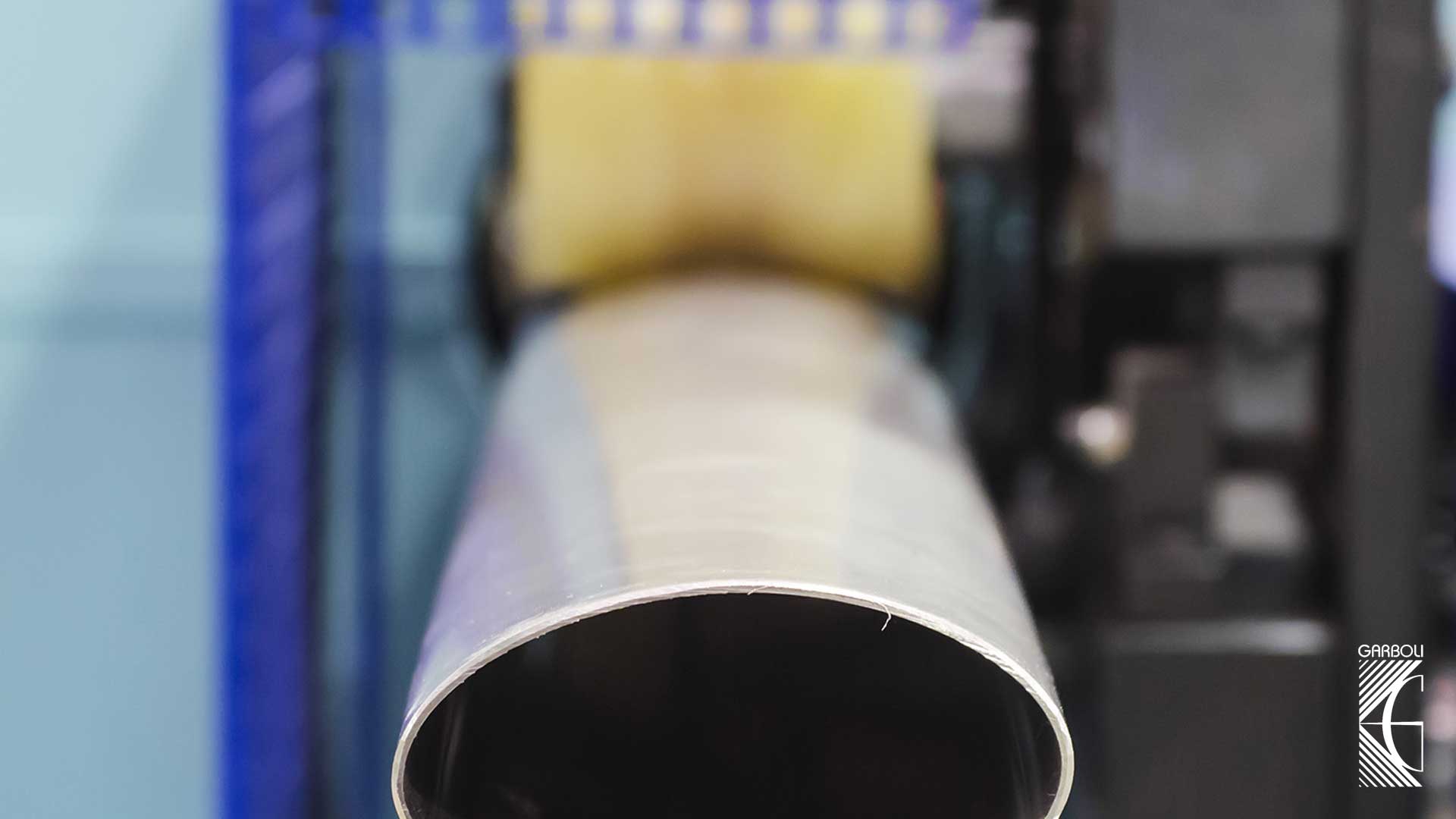

The heart of the LT200 is a powerful rotating disc through which the tube or round bar is passed. Mounted onto this disc is a pair of abrasive belts which are powered by a separate motor, the belts can be adjusted to suit varying tube diameters.  When the abrasive belt motor starts the belts close in on the workpiece.  This simple construct allows for the tube to be moved in any direction and at any speed through the Garboli LT200 machine.

Options for the Garboli LT200 machine:

–  Variable speed control

–  Fully manual feed.  Ideal for one off and complex shape sanding

–  Powered feed rollers which can operate with tube from 10mm to 203mm in diameter.

–  Multi pass feed options. Garboli use the Siemens control systems to allow for complex multi-pass processing if required

–  Fully automatic feed and tube capture systems for straight tubes

–  Varying tube thickness.  There is an option for a self-centering tube feed system on the LT200 allowing for the feeding of tube of varying diameter through the polishing head

–  Bespoke build.  Garboli can make many options from fully automatic feed in and loading tables to simple through feed roller options.

–  Wet or dry processing options

–  Wave edge or straight edge abrasive belt construction to ensure the perfect finish every time

Popular applications for the LT200:

–  Steel shaft dressing and sanding

–  Street furniture

–  Pipe sanding and finishing

– Bollards & street furniture

Need to test your products?

We stock a Garboli LPC300 demonstration machine on site at our premises in North Yorkshire where we can test samples and optimise your finishing process.

Abrasive belt size:  1500 x 90mm


Tube Feedstock Range:
-  Tube Diameter - Minimum 10mm
-  Tube Diameter - Maximum 203mm
-  Tube Length - Minimum 600mm
-  Tube length - Maximum 6000mm

Tube Feed Speed:

- 1 - 20 m/minute


Tube Feed Rollers:
Supplied as standard with one set of powered in-feed rollers to fit most popular tube dimensions.

Motor Specifications:
-  Planetary Disc Motor = 2.2Kw
-  Abrasive Belt Motor = 7.50Kw
-  Tube Drive Motor = 0.80Kw
-  Voltage = 400v, 50Hz

Net weight = 700Kg
Dimensions = 105 x 130 x 145cm (l x w x h)
