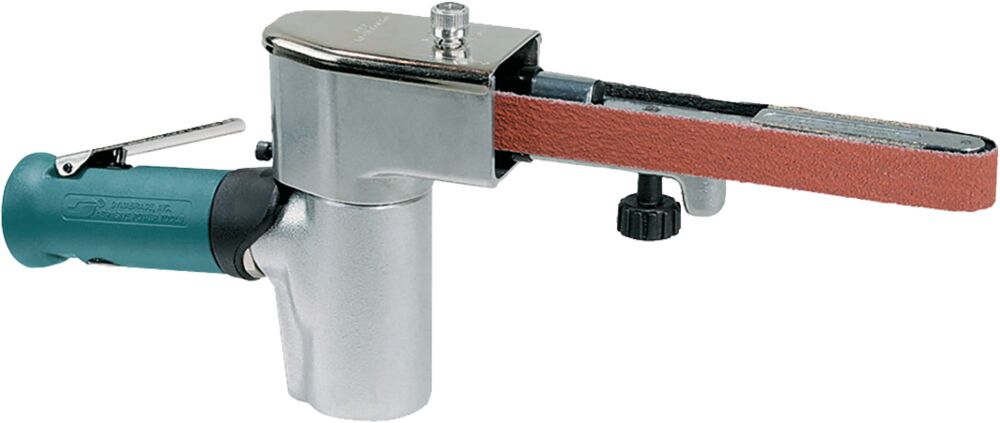

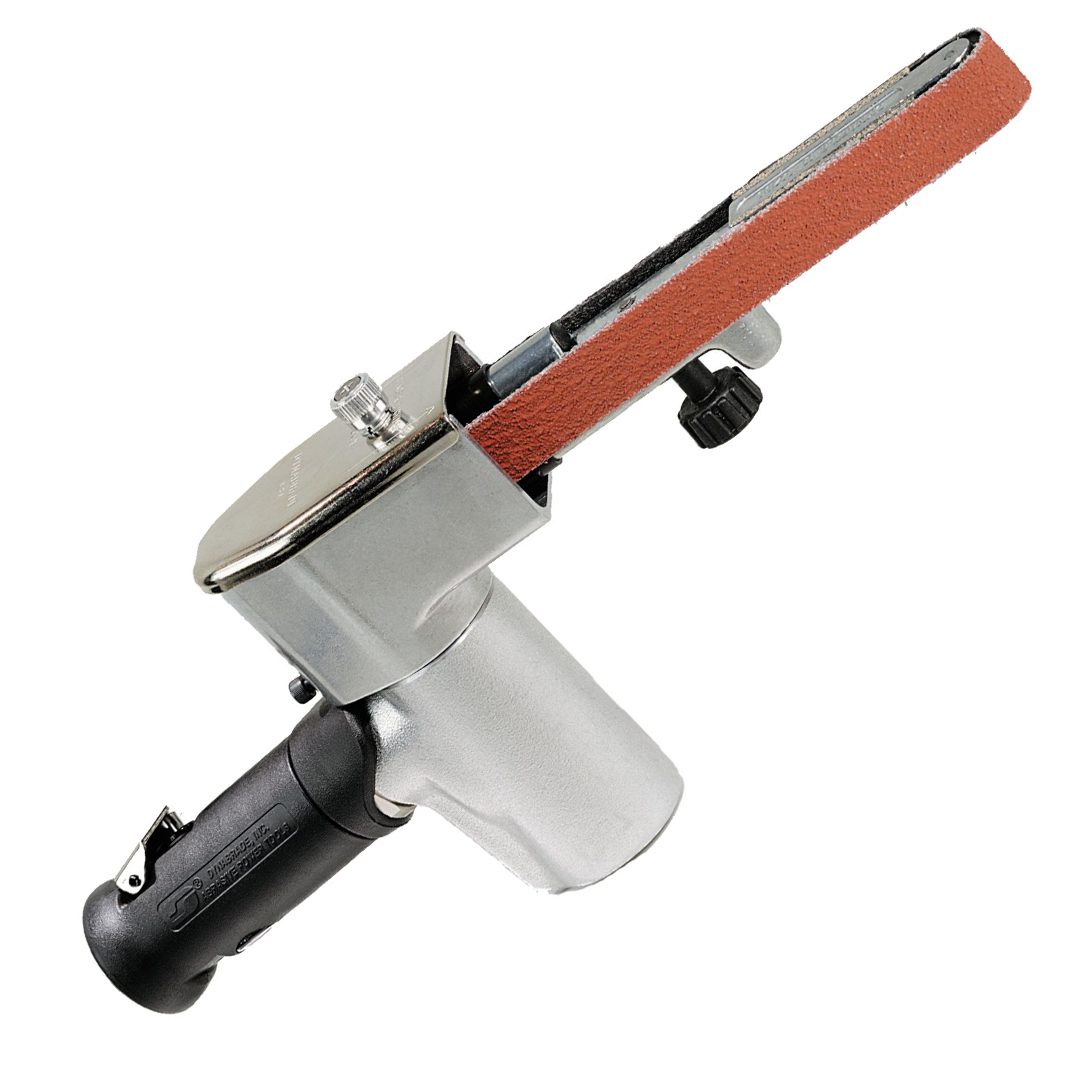

Recommended Sanding Belts for Dynafile 11 Powerfile

Organised by application we have detailed the most popular sanding belts for the Dynafile 11 air file and the recommended belts to optimise your process..

Dynabrade Dynafile 11 Applications

The Dynafile 11 is probably the most popular premium air grinder. Made by Dynabrade in the USA they have a reputation for good quality and torque. Below we have detailed our recommended belts for the most common steel and stainless steel sanding and polishing applications using the Dynafile 11.

Use the quick links below to go directly to your application:

• How to remove stainless steel tig welds with the Dynafile 11
• The best belts for removing and dressing mig welds on steel tube and handrail with the Dynafile 11
• How to grind out heavy duty mig welds with ceramic belts on the Dynafile 11
• Weld colour removal and blending of sanding lines with the Dynafile 11
• Recommended mirror polishing belt sanding process

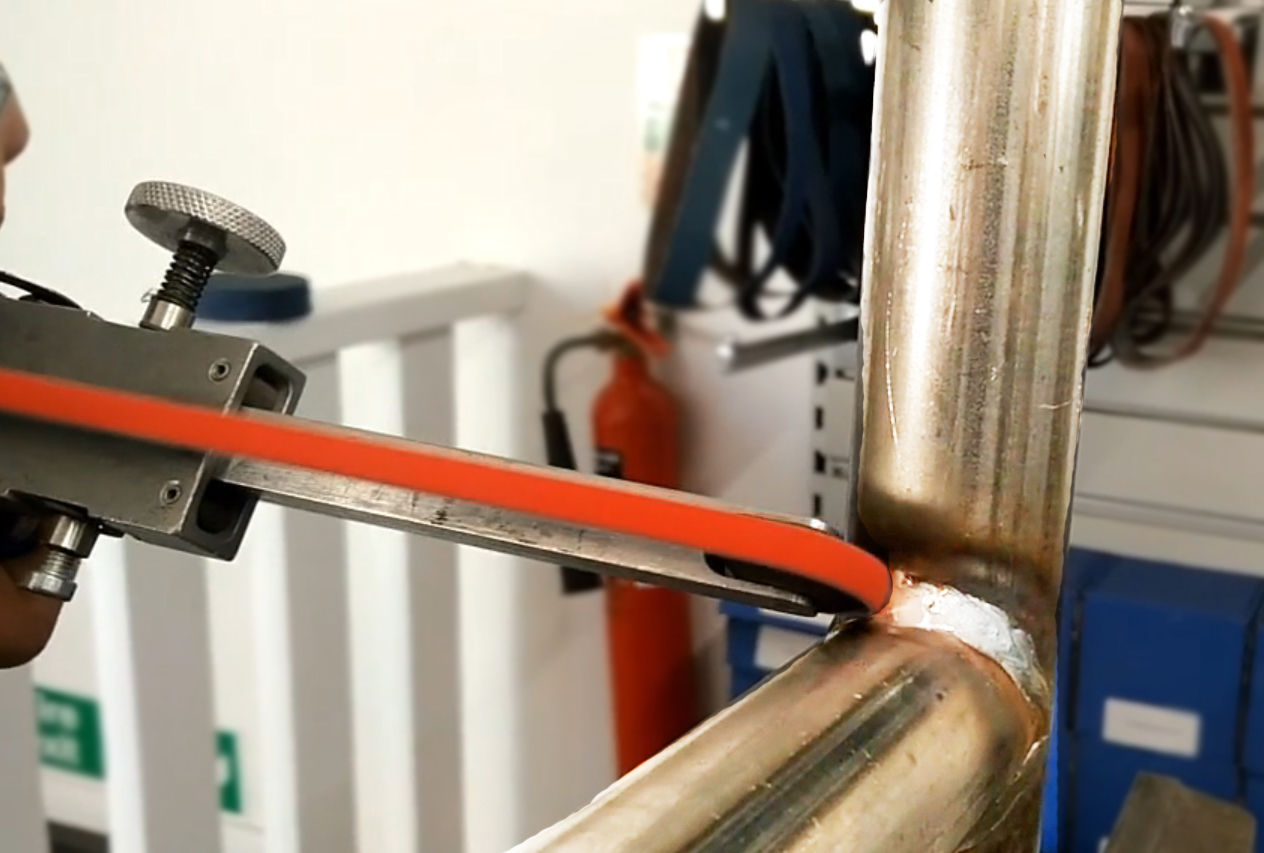

Best Belts for Removing Stainless Tig Welds with the Dynafile 11 Powerfile

As the Dynafile 11 has the option of changing arms we would recommend the 13mm belts for but weld dressing and 6mm belts for the internal corners such as on a stainless steel handrail corner.

A good quality tig weld will mean the stock removal needed is quite low whilst the quality of finish required will be high. We therefore recommend the FX87 80 grit sanding belts for the Dynafile 11. The ceramic abrasive grain has more than enough power to remove the weld without causing too much ancillary damage.

• Buy here: 457mm x 6mm wide 80 grit belts for Dynafile 11
• Buy here: 457mm x 13mm wide 80 grit belts for Dynafile 11
• Buy here: 457mm x 3mm wide 80 grit sanding belts for Dynafile 11 powerfile

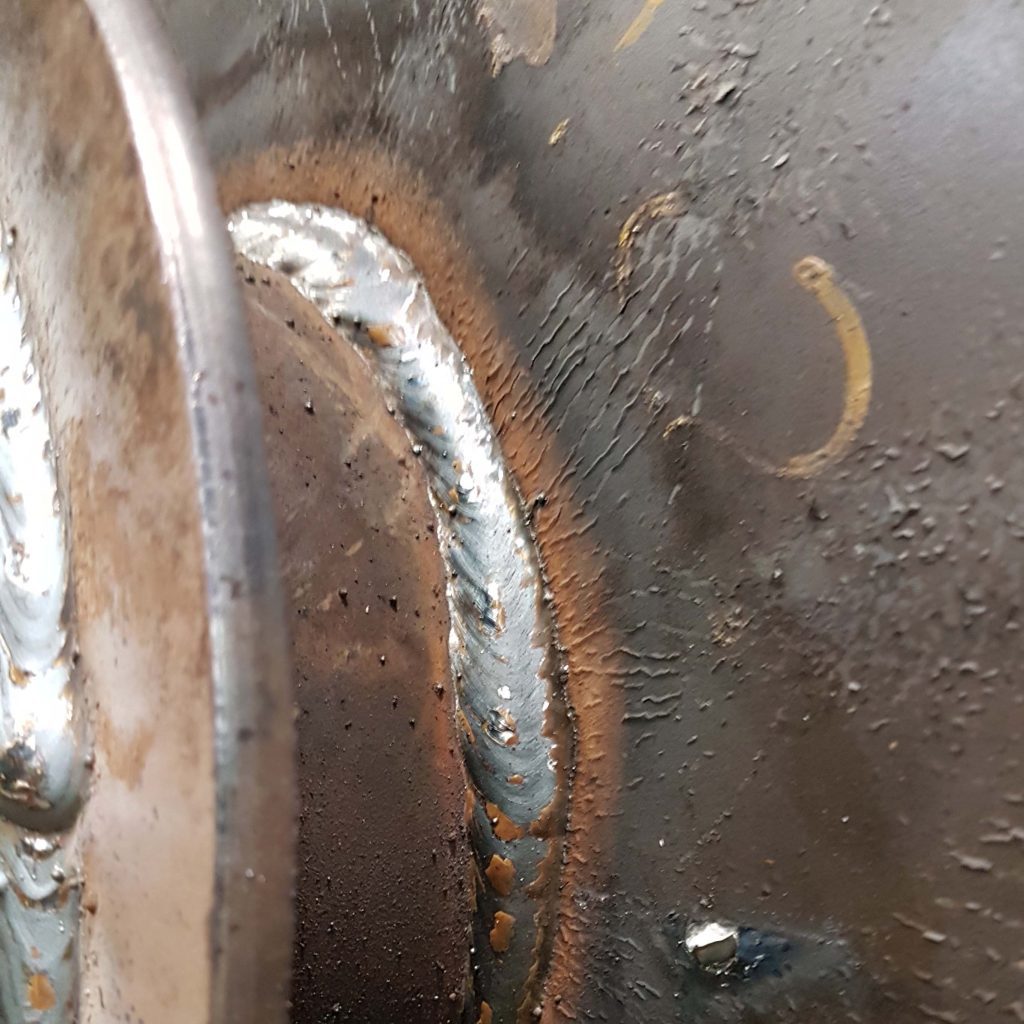

The Best Sanding Belts for Grinding Steel Mig Welds on Handrails

Mig welds tend to be larger than tig welds and also the finish requirement tends to be less so we recommend a higher aggression belt for grinding a mild steel mig weld.

The FX87 60 grit ceramic belts are ideal for sanding mig welds with the Dynafile 11 machine. The 60 grit will give fast stock removal whilst the finish achieve will be acceptable for red oxide painting.

As mig welds are larger the 13mm belts will probably be the best option. We have also provided a link to the 6mm wide belts for narrow access applications..

• Buy here: 457mm x 13mm 60 grit ceramic belts for Dynafile 11
• Buy here: 457mm x 6mm 60 grit ceramic grinding belts to fit the Dynafile 11 powerfile

The Best High Aggression Belts for Heavy Duty Mig Weld Grinding

On heavier structures a wider mig weld is necessary. Which means more stock removal is required whilst the finish is less critical.

Here is a classic example where the Cibo FX87 36 or 40 grit ceramic belts come into their own. High stock removal and long life 13mm file belts on a rounded contact wheel are the ideal option here with the Dynafile 11.

• Buy here: FX87 36 grit 457mm x 13mm wide ceramic grinding belts
• Buy here: FX87 40 grit 457mm x 13mm wide ceramic grinding belts to fit the Dyanfile 11

Best Sanding Belts for Removing Stainless Steel Weld Colour with the Dynafile 11 Powerfile

For blending the weld colour without removing the weld or for refining and finishing the tube after sanding with the FX87 80 grit belts we would recommend our RC2 medium surface conditioning belts. It is normally best to use 13mm wide belts in this application unless access is an issue, in which case we also have the 6mm belts available from stock.

• Buy here: Medium grade surface conditioning belts 457mm x 13mm wide to fit the Dynafile 11 powerfile
• Buy here: Medium grade surface conditioning belts 457mm x 6mm wide to fit the Dynafile 11 powerfile

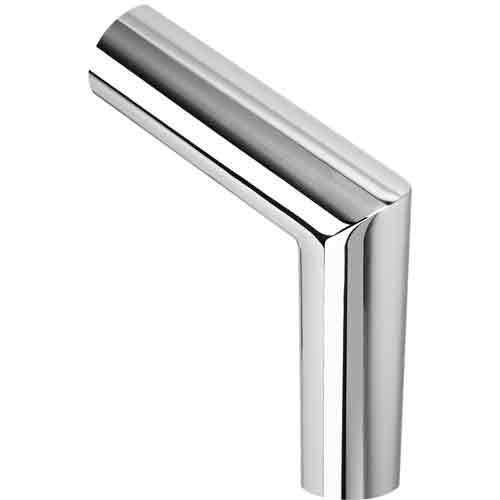

Recommended Process for Mirror Polishing Stainless Steel with the Dynafile 11 Powerfile

Mirror polishing stainless steel means many different things in different applications. This process will give you a good quality, bright finish which will be acceptable in the vast Majority of applications. The process assumes you have previously removed any weld with the FX87 80 grit belts (see above).

• Step 1: Blend P80 belt sanding lines with FF87 180 grit belts 457mm x 13mm (follow links to view product)
• Step 2: Refine 180 grit sanding lines with 3M Trizact A65 belts 457mm x 13mm
• Step 3: Further refine Trizact sanding marks with the Trizact A30 belts 457mm x 13mm. This will leave an 800 grit finish which you could polish from
• Step 4: For a better quality finish Use the Trizact A6 belts 457mm x 13mm to leave a 2000 grit finish ready for final polishing
• Step 5. Complete the polishing process with the Cibo T00 non-abrasive polishing belt which also fits on the Dynafile 11. Use this belt with the Cibo PV102 pink polishing compound

Your application not shown above?

Why not try our Find A Solution tool. With over a 1000 specific applications detailed and products recommended there is a good likelihood you can find your solution there. Here is a Find a Solution link to the Dynafile belts in 457 x 6mm belt size: Select Solution Here., this solution is specifically focused on dressing and mirror polishing stainless steel fillet welds.
