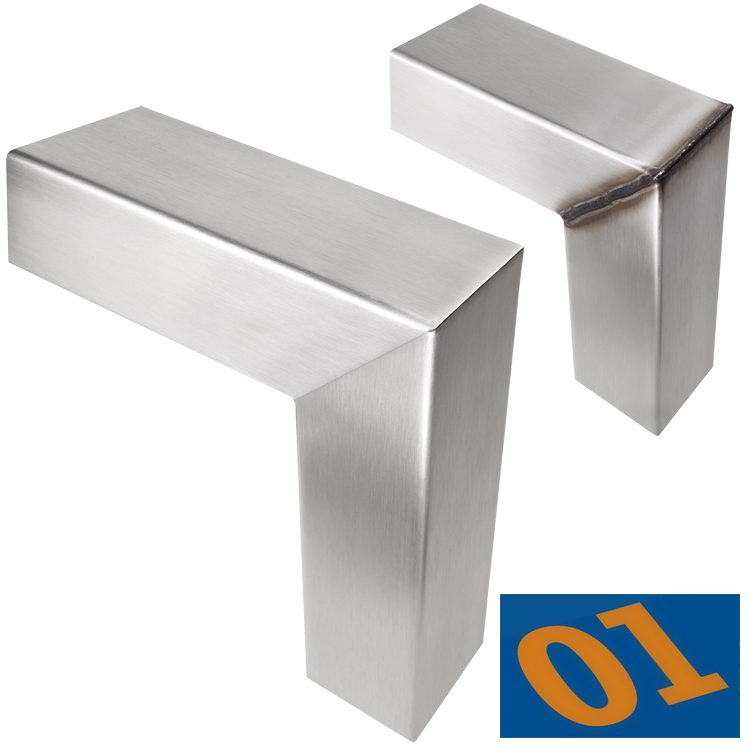

How To Satin Finish Stainless Steel Mitre Corners

    The time-consuming practice of creating a satin finish on stainless steel mitres and outer box sections is now a thing of the past.

    The Cibo ‘Time Saving Kit 01’ provides everything you need to achieve a 320 brushed/fine satin finish on stainless steel corners.

    It’s quick, it’s efficient, it’s time saving.

    Let’s see how it’s done…

    What are Time Saving Kits?

    A Cibo Time Saving Kit contains all the products and information you need to complete your desired process. There are 3 kits for satin finishing and 3 for mirror polishing. See all kits here.

    Process Overview

    Attach a backing pad and interface foam to your Finipower Plus machine.

    Sand the weld with LCGR discs and refine with 237GR discs.

    Use Inoxitape alongside a flap wheel to restore the brushed finish.

    Clean up with Inoxiclean spray.

    Continue reading our in-depth guide below…

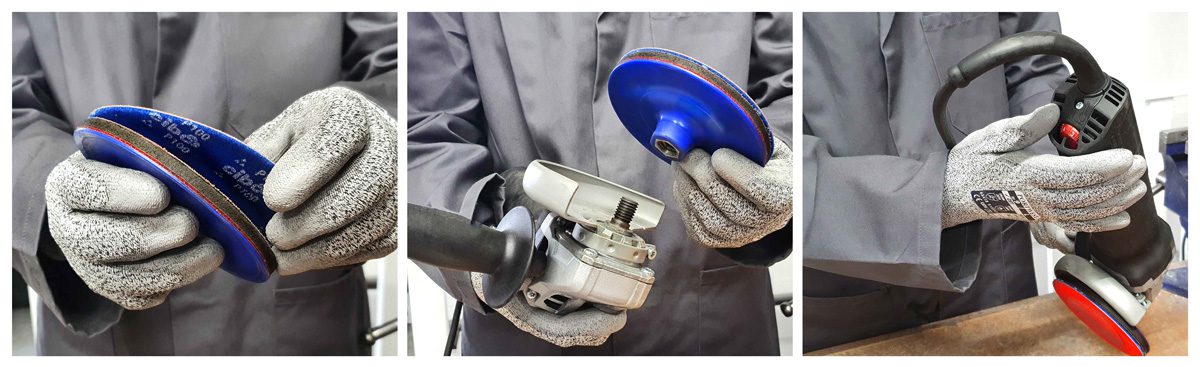

    Step 1: Preparation

    Starting with the 125VELVZ flexible backing pad with an M14 Spindle – attach this to your Finipower or other variable speed angle grinder.

    Next, grab the 125IT and attach to the backing pad. This is a heat resistant interface foam which reduces grinding pressure and increases control so you can remove the weld without undercutting.

    Step 2: Dressing the welds

    Simply attach the FX87GR/100/S133 ceramic sanding disc to the interface foam and sand the welded joint flat. Your angle grinder’s optimum rotation speed for this is between 3,000 and 4,000 rpm.

    Grinding lines?  Don’t panic – start with the coarsest Trizact grip disc 237GR/A160/S133 and blend the 100 grit sanding lines until smooth. Then repeat with 237GR/A65/S133 for an enhanced result.  This will leave a 280 grit finish on your workpiece.

    Once you are satisfied with this result, allow your workpiece to cool.

    Abrasive Tip:  Ensure that the sanding lines of the disc are in the same direction as your final brush finish to ensure a fast brushing process.

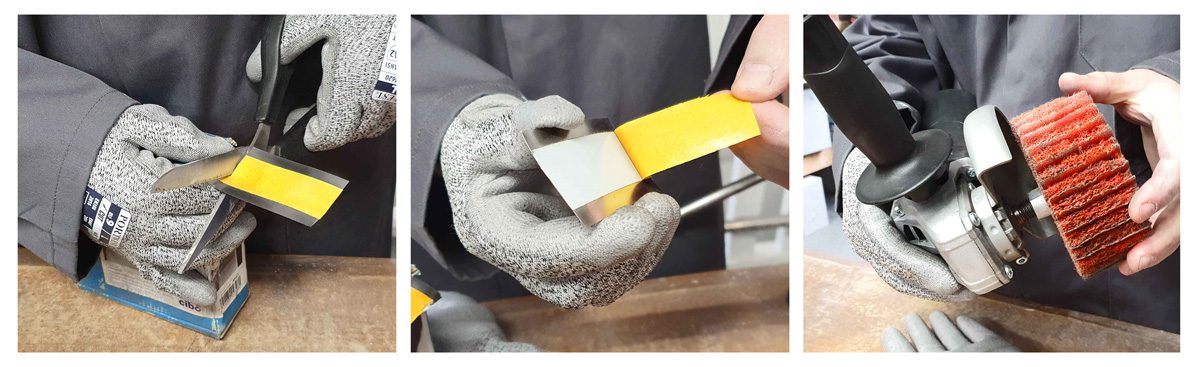

    Step 3: Restoring the brushed finish

    Take a section of MHIT Inoxitape and remove the adhesive strip.  Attach this to your workpiece from the inner to the outer corner.

    The FMCM/80/12050 is the perfect tool for your next step. Polish the surface lengthwise towards the inoxitape, remaining on the side of the tape you are currently working on.

    Small scratches can be erased at this point by moving the combi wheel in a circular motion.

    Now for the easy part! Repeat the process on the opposite side of the weld.

    Step 4: The Clean-up

    And just like that, you’re done! For the best finish use SPIC Inoxiclean Spray and a soft cloth to remove any residue from your workpiece. This will also leave an invisible wax coating which will protect the metal from finger marks.  Although not included in the kit, you can grab a can of this here.

    Please take a look at our short video below which contains brief clips of all of the above steps

    What is included in Time Saving Kit 01?

    Everything you need for the job, apart from the angle grinder itself. We recommend the FiniPower machine.

    • 125VELVZ (x1 pad)   Hard nylon backing pad with high heat tolerance (125mm Ø + M14 thread)
    • 75VELVZ  (x1 pad)   Hard nylon backing pad with high heat tolerance (75mm Ø + M14 thread)
    • 125IT (X1 pad)   Soft foam interface to improve abrasive disc lifetime. Reduces heat and pressure (125mm Ø)
    • 75IT (X1 pad)   Soft foam interface to improve abrasive disc lifetime. Reduces heat and pressure (75mm Ø)
    • LCGR/100/S133 (X2 discs)   100 grit ceramic grip disc for high quality grinding (125mm Ø + 75mm Ø centre hole)
    • 237GR/A160/S133 (X5 discs)   120 grit Trizact grip disc to refine and blend. (125mm Ø + 75mm centre hole)
    • 237GR/A65/S133 (X5 discs)   280 grit Trizact grip disc to refine and blend. (125mm + 75mm Ø centre hole)
    • 237GR/A45/S133 (X5 discs)   400 grit Trizact grip disc to refine and blend. (125mm Ø + 75mm Ø centre hole)
    • RCD/ME/125 (X1 disc)   Medium rapid combi disc to refine the brushed finish. (125mm Ø)
    • FMCM/80/12050 (X1 wheel)   80 grit combi flap wheel to erase light scratches and leave a satin finish (120mm x 50mm + M14 thread)
    • MHIT (X1 roll)  Self adhesive stainless steel tape.
